Efficient Automatic Stacking Solution for Plywood Production Line
Product Overview

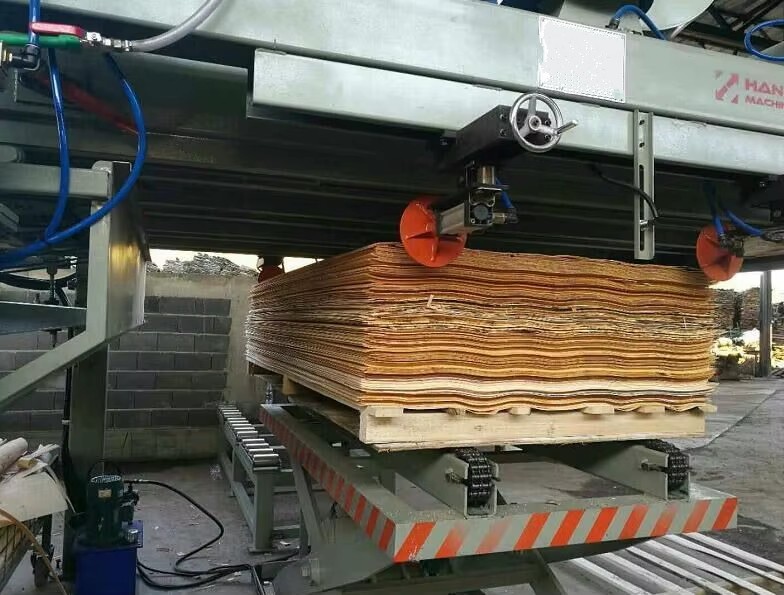

The Auto Stacker Machine is an advanced automatic stacking solution designed for stacking panels, boards, and industrial materials efficiently and accurately. It automates the processes of material receiving, alignment, and stacking, significantly reducing labor costs while improving production efficiency. This stacker machine is widely used in plywood, MDF, OSB, furniture, and wood-based panel production lines, and can be seamlessly integrated with existing manufacturing equipment.
Product Advantages

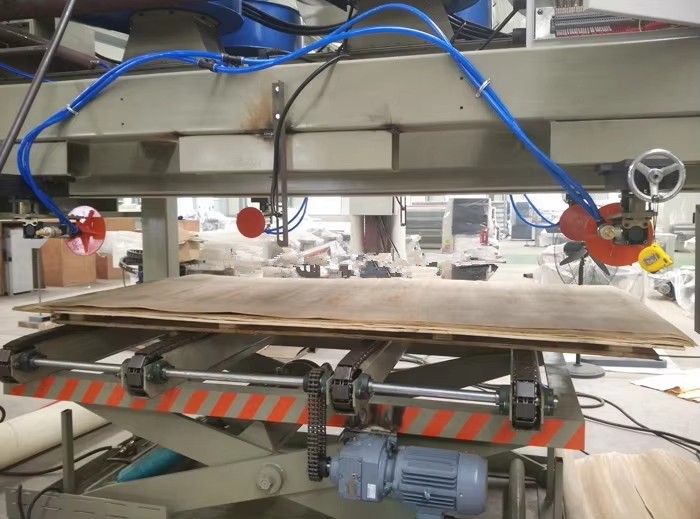

Equipped with sissor lifting machine,fully automatic process,save labor cost and improves production efficiency.
Max.speed 140m/min.
We've supplied this automatic veneer stacker machine for plywood worldwide

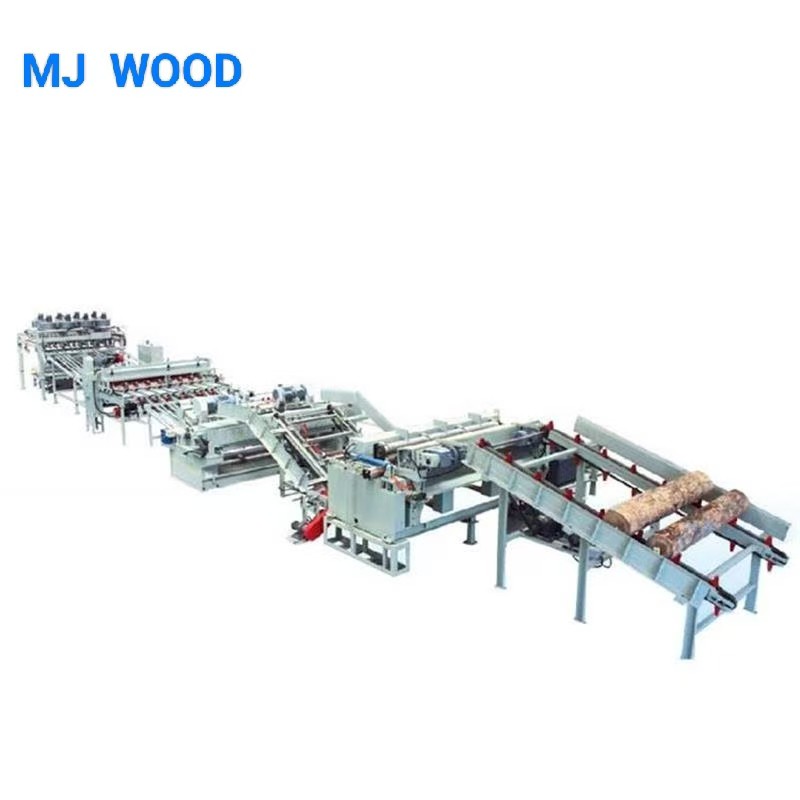

Automatic 8x4ft Veneer Peeling Line Stacker Machine Veneer Lathe For Plywood Production Line

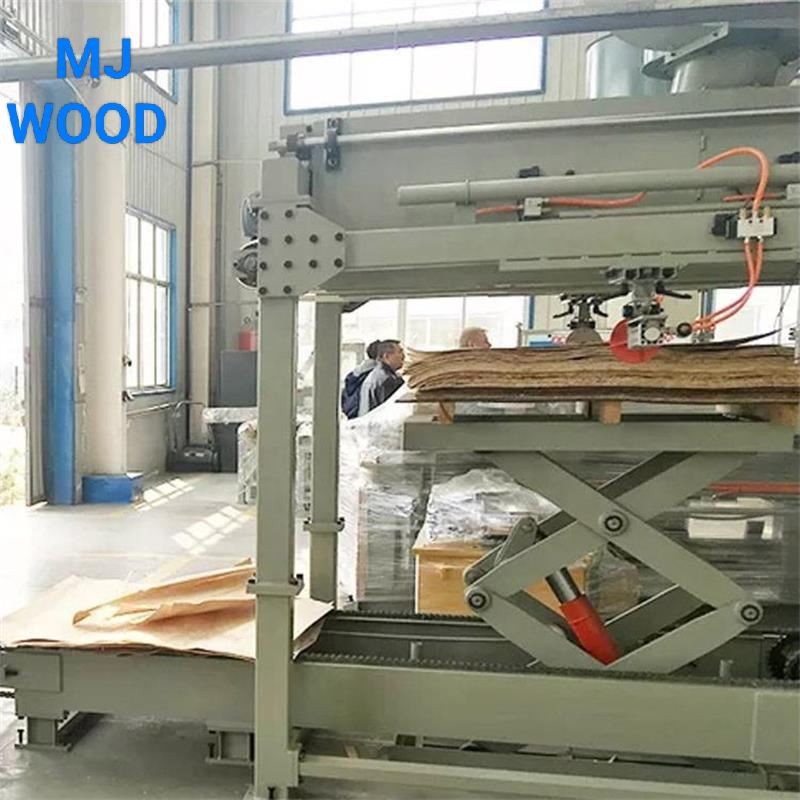

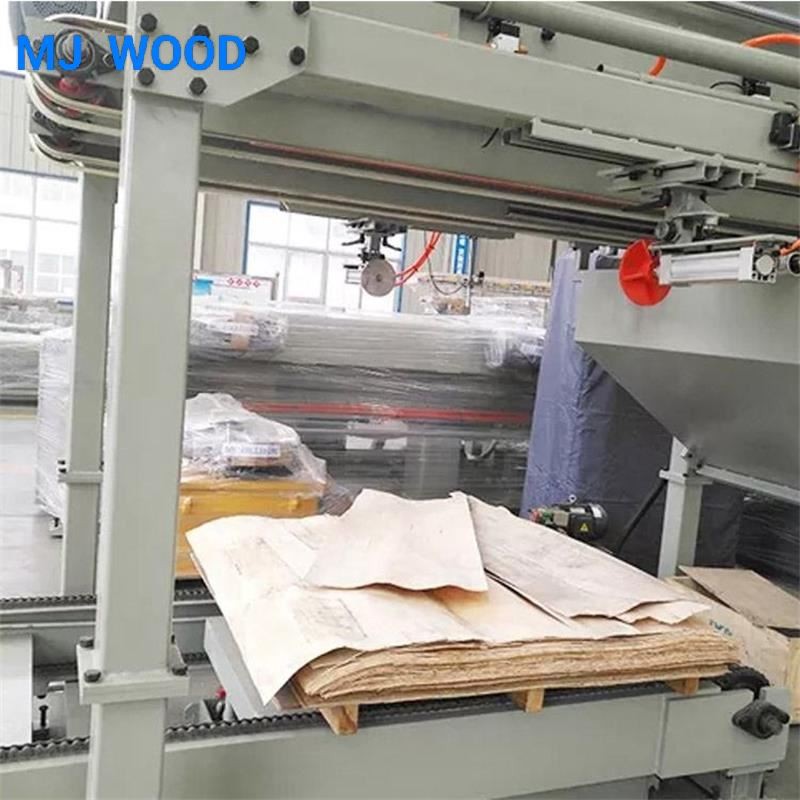

Automatic veneer stacking,with alignment device,to make all veneers in aligned in same position.
Max.stacking height 1000mm
One or two stackers are optional.

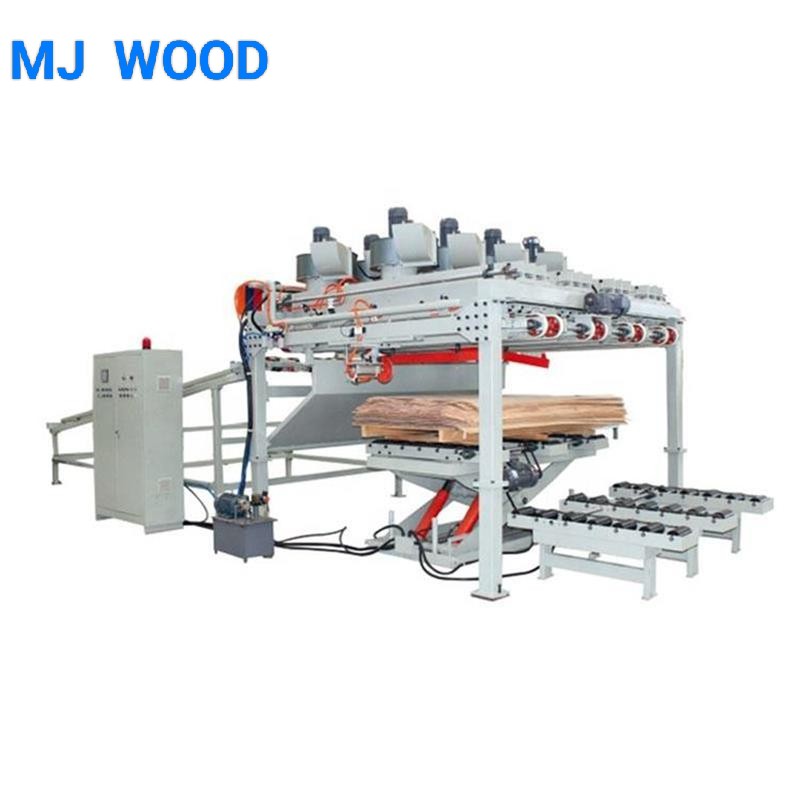

Automatic vacuum Plywood Veneer Stacker Machine

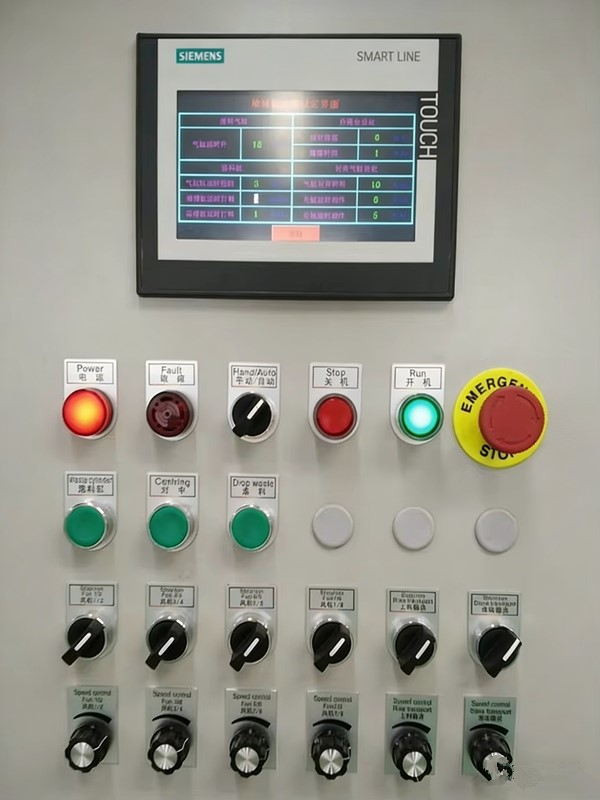

SIEMENS touch screen,easy to operate.
Technical Specifications
|
Model |
MJ-VS130 |
|
Maximum log length |
1300mm |
|
Maximum log diameter |
Φ700mm |
|
Blade size |
1600*180*16mm |
|
veneer thickness |
0.6-3.6mm |
|
Veneer size |
1300mm*(600mm-2600mm) |
|
Veneer degree |
3 degrees |
|
product capacity |
60-80m³/day |
|
Total power |
125kw |
|
operator |
1-2person |
|
Weight |
28600kgs |
|
Overall size |
24000mm*5600mm |
Applications
The Auto Stacker Machine is suitable for a wide range of industries, including:
- Plywood production lines
- MDF / HDF / OSB panel processing
- Furniture manufacturing plants
- Woodworking machinery systems
- Building material and industrial board factories
Customization Options
We provide customized automatic stacking solutions based on your production needs:
- Different board sizes and thickness stacking
- Integration with existing production lines
- Automatic counting and batch stacking
- Enhanced safety protection and automation upgrades
Why Choose Our Auto Stacker Machine?
- Extensive experience in automation and woodworking machinery
- Durable and stable machine structure
- Compliance with international quality and safety standards
- Export-ready design for global markets
- Professional pre-sales consultation and after-sales support
Packaging and Shipping
Frequently Asked Questions (FAQ)
Q1: Can the machine handle different material sizes?
A: Yes, the machine can be customized to accommodate various material dimensions.
Q2: Can it be connected to an existing production line?
A: Yes, it is designed for easy integration with different production systems.
Q3: Is the machine suitable for export markets?
A: Yes, export standards and certifications such as CE are available upon request.
Contact Us
If you are looking for a reliable, efficient, and intelligent Auto Stacker Machine, please contact us for more details and a competitive quotation.
Our professional team will provide a tailored automatic stacking solution to improve your production efficiency and reduce labor costs.
