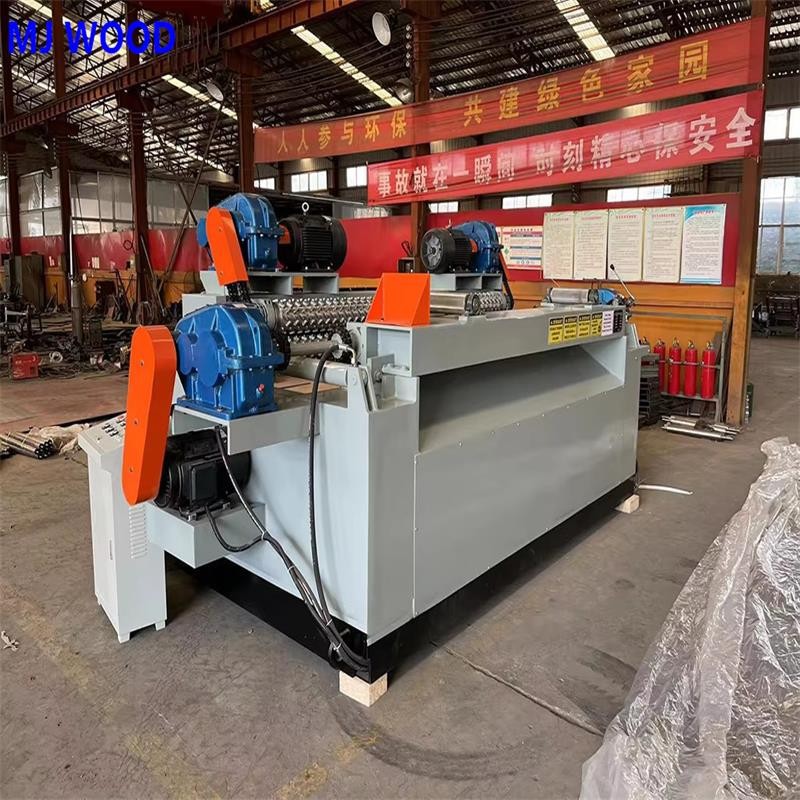

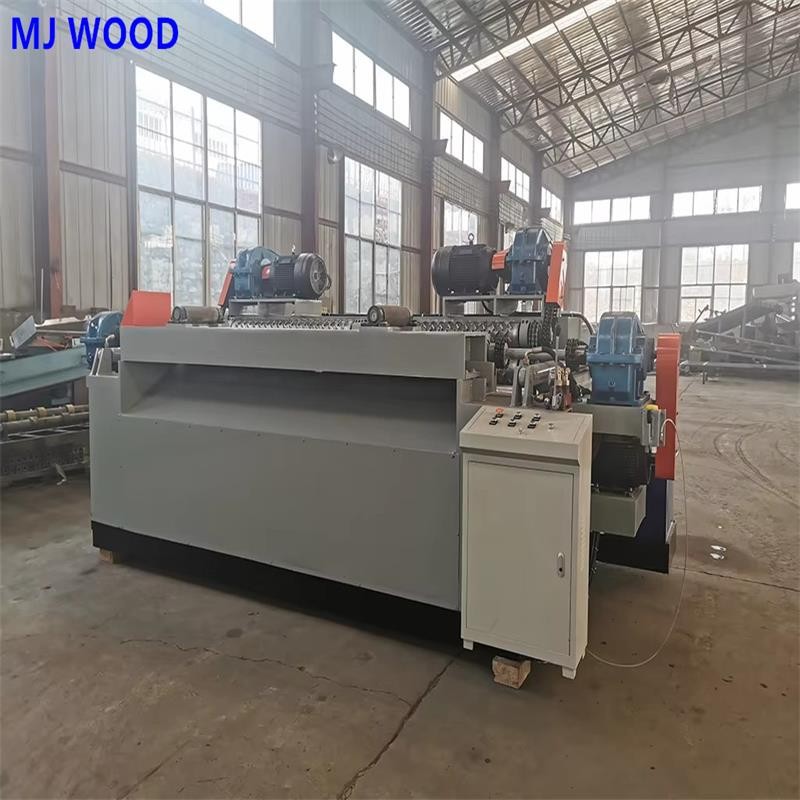

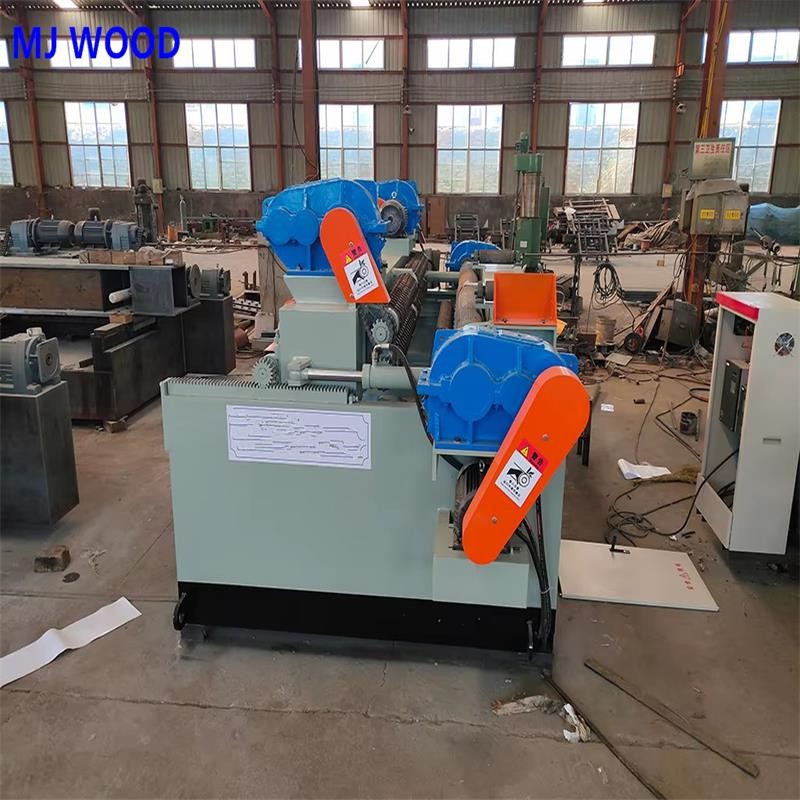

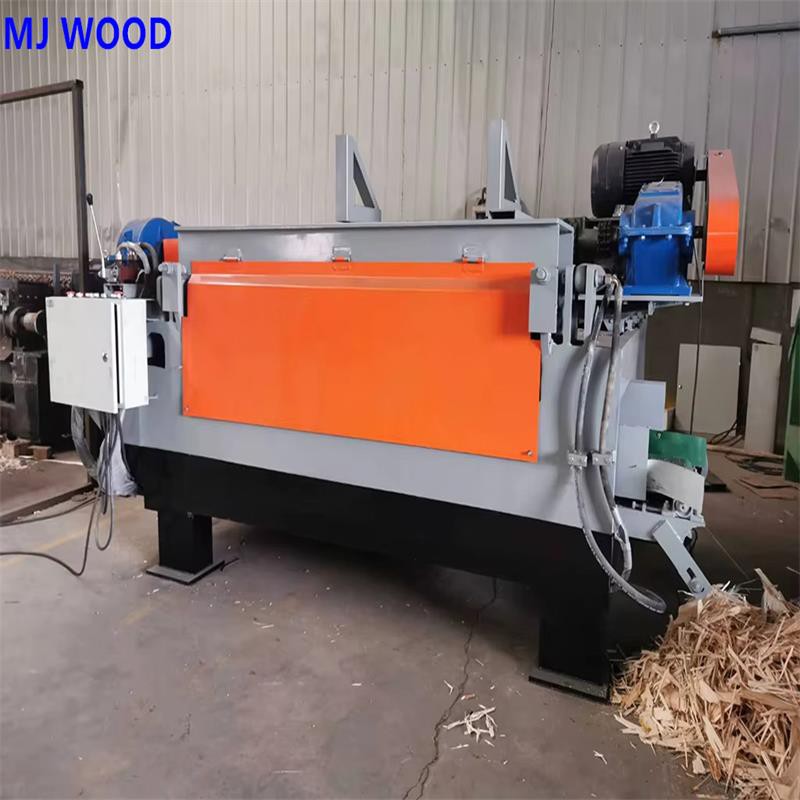

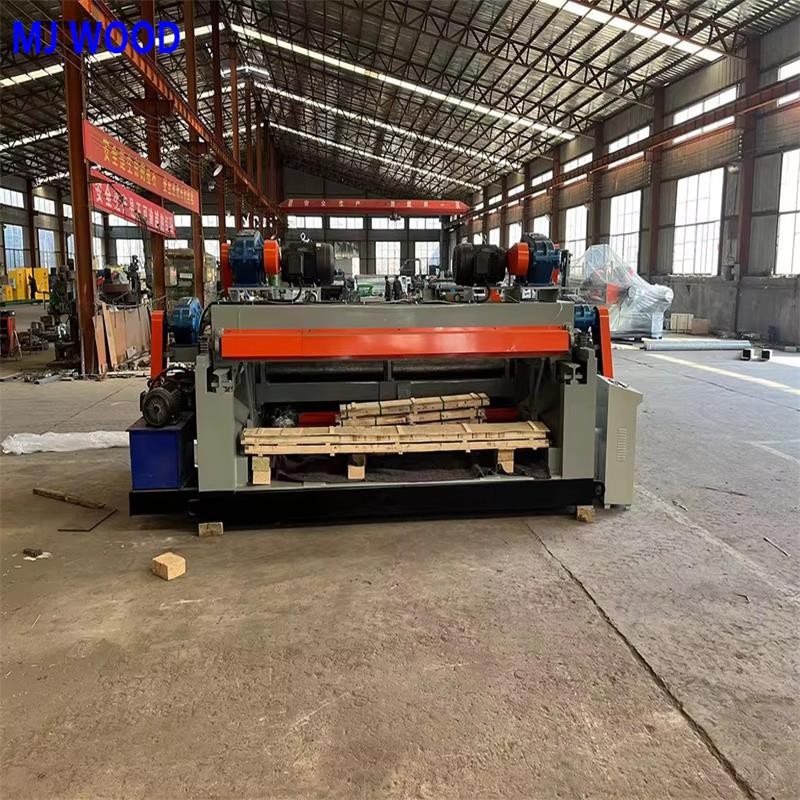

Log Peeler

High-efficiency Log Peeler designed for debarking logs before veneer peeling and plywood production. The machine removes bark, sand, and impurities effectively, improving veneer quality and reducing knife wear. Widely used in plywood and veneer production lines.

Send Inquiry

Description

Product Overview

Log debarking is a critical pre-processing step in plywood and veneer production.
Our Log Peeler is designed to remove bark and surface impurities efficiently before rotary peeling.
By providing clean log surfaces, this machine helps improve veneer quality, extend knife life, and enhance overall production efficiency.

Key Features & Benefits

Efficient Debarking System

Removes bark, sand, and impurities quickly and thoroughly.

Reduced Knife Wear

Protects rotary peeling knives and lowers maintenance costs.

Heavy-Duty Machine Structure

Strong steel frame ensures stable and long-term operation.

Easy Operation

Simple structure, easy operation, and low maintenance.

Production Line Integration

Ideal for integration with veneer peeling and plywood production lines.

Applications

Plywood production lines

Veneer peeling lines

Film faced plywood production

Log pre-processing for wood panels

Technical Specifications

Name and Model	4ft log debarking machine	8ft log debarking machine with chipper
Max. length of peeler log	1400mm	2600mm
Max. diameter of peeler log	Φ80-Φ600mm	Φ80-Φ800mm (Log drop diameter 650mm)
Blade size	150018016mm	275018016mm
Linear speed of host machine	70m/min	70m/min
Diameter of double roller	180mm	180mm
Diameter of single roller	150mm	150mm
Power of double roller	11KW	11KW*2
Power of single roller	11KW	11KW*2
Power of hydraulic station	5.5KW	7.5KW
Power of assist debarking	/	2.2KW
Power of waste chipper	/	11KW*2
Total power	27.5KW	75.7KW
Reducer	350 gear type reducer	350 gear type reducer
Total weight	4000KG	9000KG
Overall dimensions	380022001400mm	520022001800mm
