Product overview
The Cold Press In Plywood system plays a critical role in stabilizing panel structure before hot pressing, ensuring higher quality finished plywood products.

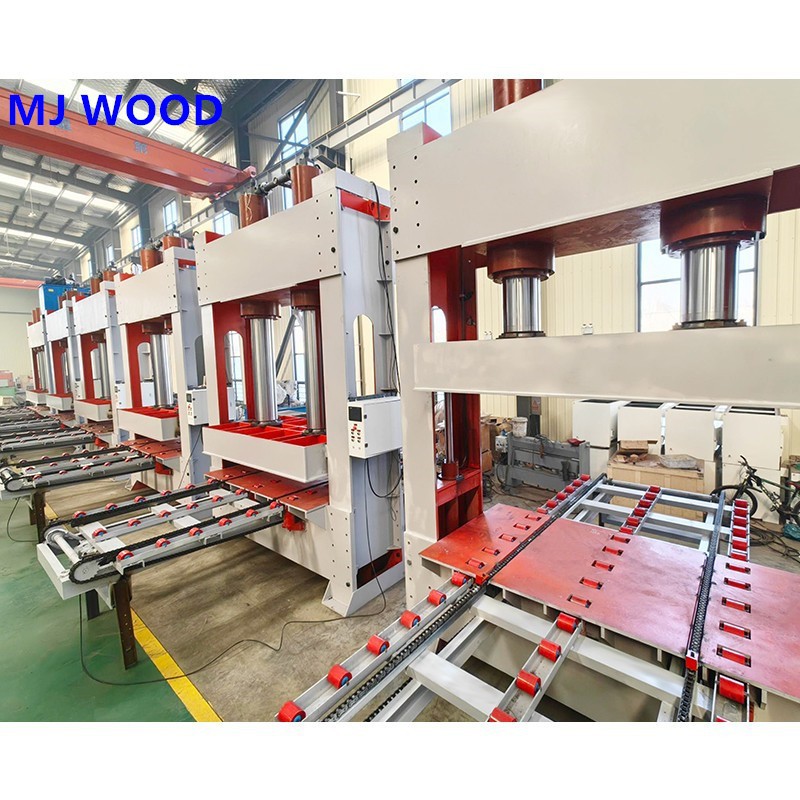

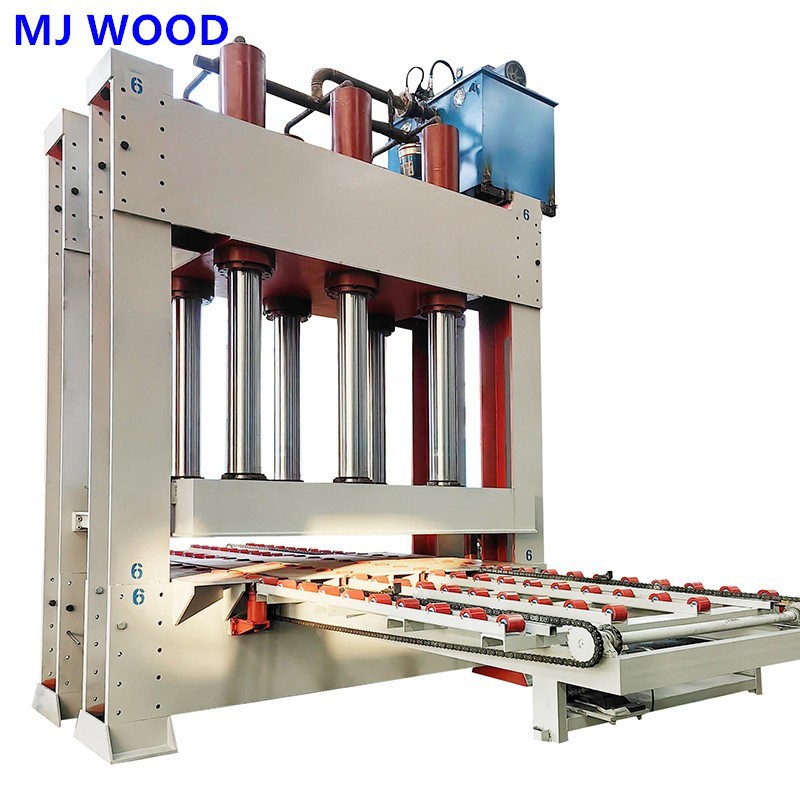

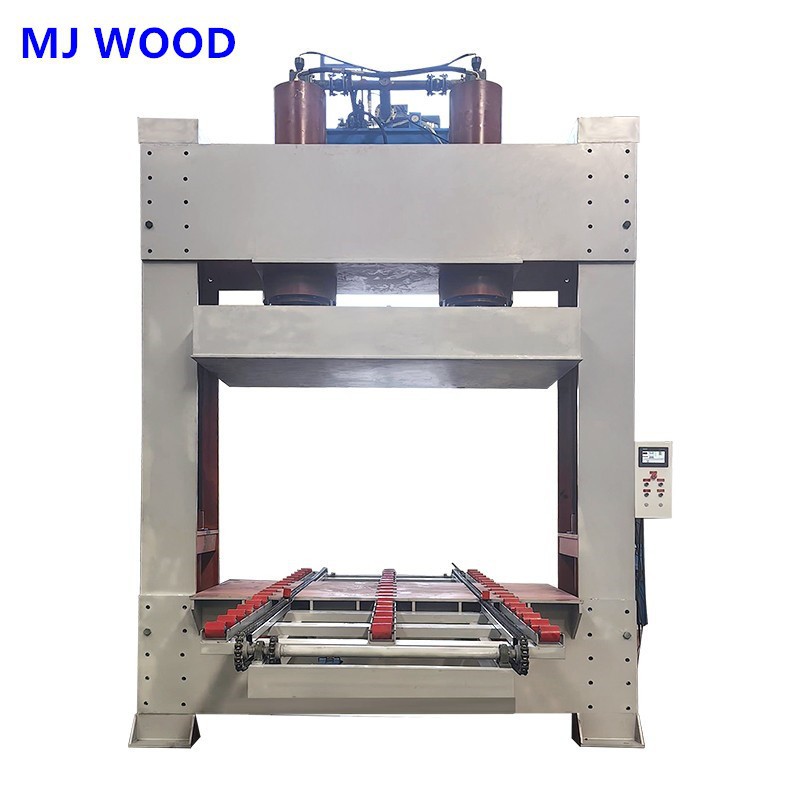

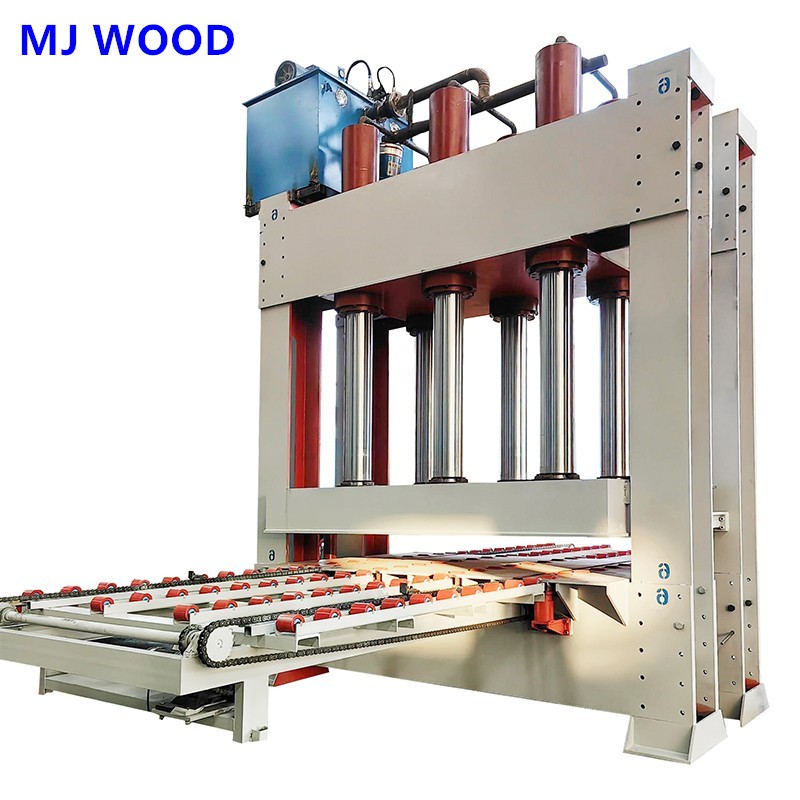

In plywood manufacturing, our Cold Press In Plywood machine is used during the pre-pressing stage of panel production. We apply stable and evenly distributed hydraulic pressure at room temperature, allowing glued veneers to form an initial bond and improving overall panel flatness and structural stability.
We have optimized the pressure distribution system to ensure uniform force across the entire panel surface, reducing internal gaps and enhancing veneer contact. Through the pre-pressing process, we help our customers:
- Reduce internal air within panels
- Improve bonding consistency between veneers
- Increase hot press efficiency
- Lower energy consumption during hot pressing
- Improve final product yield
We use a heavy-duty steel frame to ensure long-term operational stability. Our hydraulic system is thoroughly tested to support continuous industrial production and meet the needs of plywood factories of different production capacities.
Why Choose Our Cold Press Machine?
Improved Panel Stability
Ensures stronger and more uniform bonding between veneer layers. The consistent pre-pressing process minimizes internal gaps and improves panel flatness before hot pressing.
Optimized Hot Press Efficiency
Pre-pressed panels enter the hot press with better structure integrity, helping reduce pressing time, improve heat transfer efficiency, and increase overall production yield.
Stable Pressure Output
Equipped with a precision hydraulic system that delivers uniform and controlled pressure across the entire platen surface, ensuring consistent panel quality and reliable operation during continuous production.
Heavy-Duty Construction
Built with a reinforced steel frame structure designed to withstand high industrial loads, ensuring long-term durability and stable performance in demanding factory environments.
Full Line Integration
Easily integrated with hot press machines, glue spreaders, veneer layup systems, and complete plywood production lines for seamless workflow and higher production efficiency.
Technical Specifications
|
Specification |
|||
|
Model |
400T Upper Cold Press |
500T Upper Cold Press |
400T ordinary cold press |
|
Nominal gross pressure |
400Tons |
500Tons |
400Tons |
|
Place of cylinder |
top |
top |
down |
|
Nominal oil pressure |
25Mpa |
25Mpa |
25Mpa |
|
Dimension |
3600*1370*4600mm |
3600*1370*4600mm |
3600*1370*4100mm |
|
Framework |
1800mm |
1800mm |
1800mm |
|
Thickness of steel |
30mm |
35mm |
30mm |
|
Total weight |
about12T |
about13T |
about12T |
|
Controlling style |
Automatic adding pressure. |
Automatic adding |
Automatic adding pressure |
|
automatic unload pressure |
pressure, automatic unload |
automatic unload pressure |
|
|
pressure |
|||
Applications
Plywood manufacturing factories
Film faced plywood production lines
Furniture board production
Multi-layer panel production
Industrial panel manufacturers
FAQ
Q: What is the main function of a cold press in a plywood production line?
A: It is used in the pre-pressing stage to form an initial bond between glued veneers, improving panel flatness and stability before hot pressing.
Q: Can the cold press improve hot press efficiency?
A: Yes. Pre-pressed panels have better structural integrity, which helps reduce hot pressing time, improve final yield, and optimize overall production efficiency.
Q: Can the pressure and platen size be customized?
A: Yes. The machine can be customized according to production capacity, panel specifications, and factory layout requirements.
Q: Can the machine be integrated with existing production lines?
A: Yes. It can be integrated with hot press machines, glue spreaders, veneer layup systems, and other equipment.
Q: Is the machine suitable for continuous industrial operation?
A: Yes. It features a heavy-duty steel structure and a stable hydraulic system designed for long-term continuous production.
Q: Do you provide complete plywood production line solutions?
A: Yes. We support full line planning, equipment selection, and export services.
