As a professional plywood machinery manufacturer, we supply stable, efficient, and customizable hot press machines for different production capacities.
Product Overview
The hot press for plywood is one of the most critical machines in a plywood production line. It is responsible for bonding multiple veneer layers together under controlled temperature and pressure to produce strong and durable plywood panels.
After cold pressing and repairing process, the treated basic plywood will be sent to basic hot press for Plywood. It will take 5-60 minutes depends on board thickness. After hot pressing, the workers will do the second time defects repairing. The board will be stored in semi product storage hours for cooling and storage.
The working condition of the hot press is directly related to the production quality of the plywood, so it is especially important to choose a high quality machine.
We can design and manufacture any size according to users' requirements.
Welcome inquiry with details about your product plan.
Key Advantages
High Pressure & Uniform Heat Distribution
Advanced hydraulic system and optimized heating plates ensure even pressure and temperature across all layers.
Stable Bonding & Superior Panel Strength
Accurate control of pressing time, temperature, and pressure improves adhesive curing and panel durability.
Energy-Efficient Design
Optimized thermal structure reduces heat loss and improves energy utilization efficiency.
Heavy-Duty Structure for Continuous Operation
Reinforced frame and premium hydraulic components ensure long-term stable performance in industrial environments.
Flexible Configuration Options
Available in different daylight openings, pressure capacities, and heating systems to match various production needs.
Applications
- Plywood manufacturing
- Film faced plywood production
- Furniture panels
- Wood-based panel production lines
|
Specification of Hot Press for Plywood |
|||
|
The Pressure, working size, working pressure can all be customized according to client's requirements. |
|||
|
Models |
SEHP48-1560 |
SEHP48-2060 |
SEHP48-3080 |
|
Max. Working Pressure |
600T |
600T |
800T |
|
Working Layers |
15 |
20 |
30 |
|
Distance Between Each Layer |
70mm |
70mm |
70mm |
|

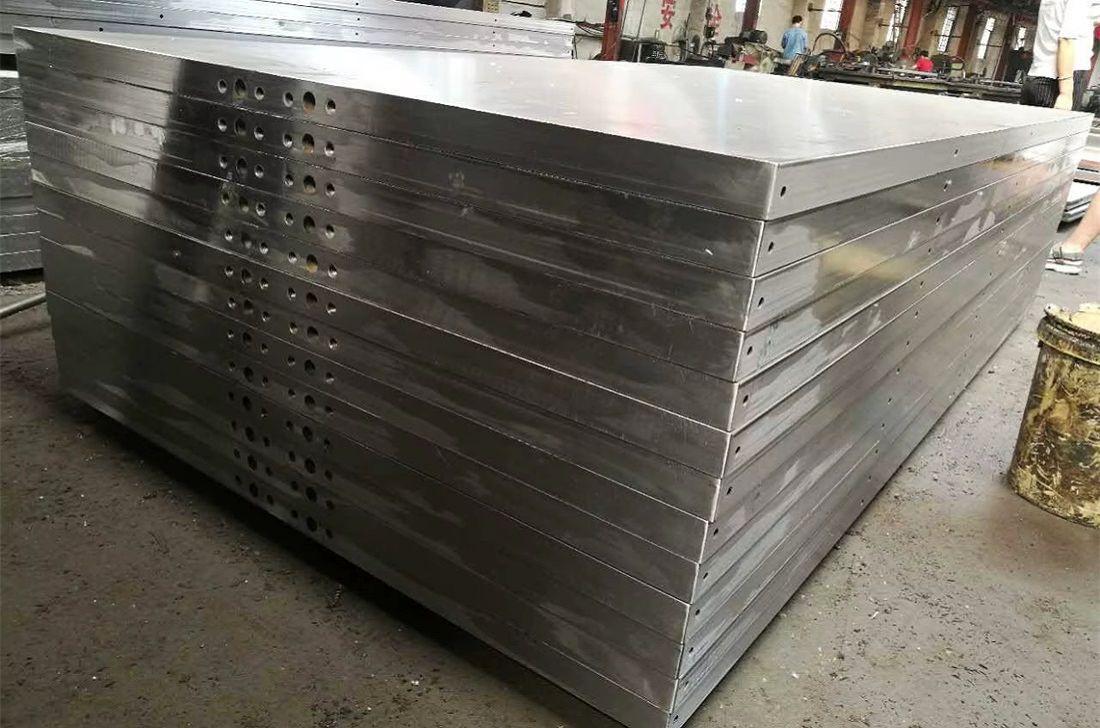

Hot Platen Size |
1370*2700*52mm |
1370*2700*52mm |
1370*2700*52mm |
|
Hot Platen Quantity |
16pcs |
21pcs |
31pcs |
|

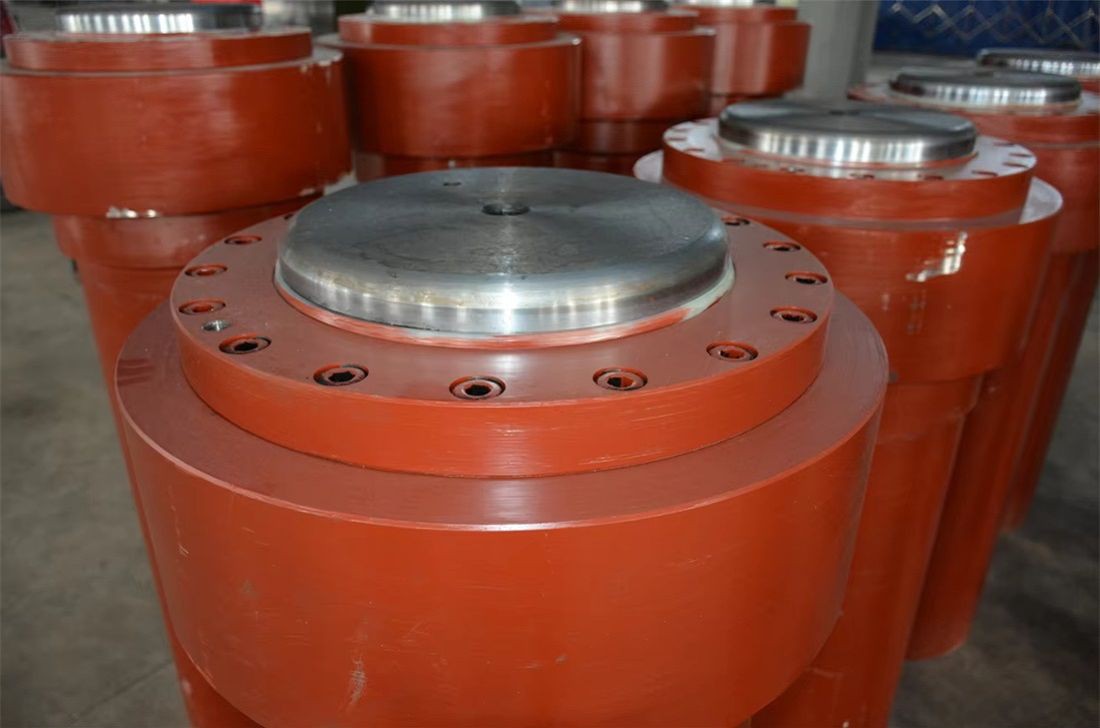

Cylinder |
400mm*1050mm*2pcs |
400mm*1400mm*2pcs |
320mm*2100mm*4pcs |
|
Motor Power |
11KW+7.5KW |
15KW+7.5KW |
22KW+7.5KW |
|
Low Pressure Pump |
16ML plunger pump |
16ML plunger pump |
16ML vane pump |
|
High Pressure Pump |
237L vane pump |
255L vane pump |
94L vane pump |
|
Control System |
PLC automatic control |
PLC automatic control |
PLC automatic control |
|
Main Frame Thickness |
40mm |
40mm |
45mm |
|
Up, Middle, Bottom Beam Height |
900mm, 400mm, 900mm |
900mm, 400mm, 900mm |
900mm, 400mm, 900mm |
|
Column Width |
400mm |
400mm |
400mm |
Quality Control & Manufacturing
Each hot press for plywood is tested for hydraulic pressure, temperature uniformity, and operational stability before delivery to ensure reliable performance.
Why Choose Us
Professional plywood machinery manufacturer
Stable quality and competitive pricing
Custom solutions for global markets
Technical and after-sales support
Contact Us
Contact us today for hot press for plywood price, technical details, and customized plywood production solutions.
