The Automatic Plywood Paving Line is a professional solution for core veneer assembling and paving in plywood manufacturing plants. It is widely used in plywood, LVL, blockboard and engineered veneer production lines, helping factories improve production efficiency, reduce labor cost, and ensure stable plywood quality.

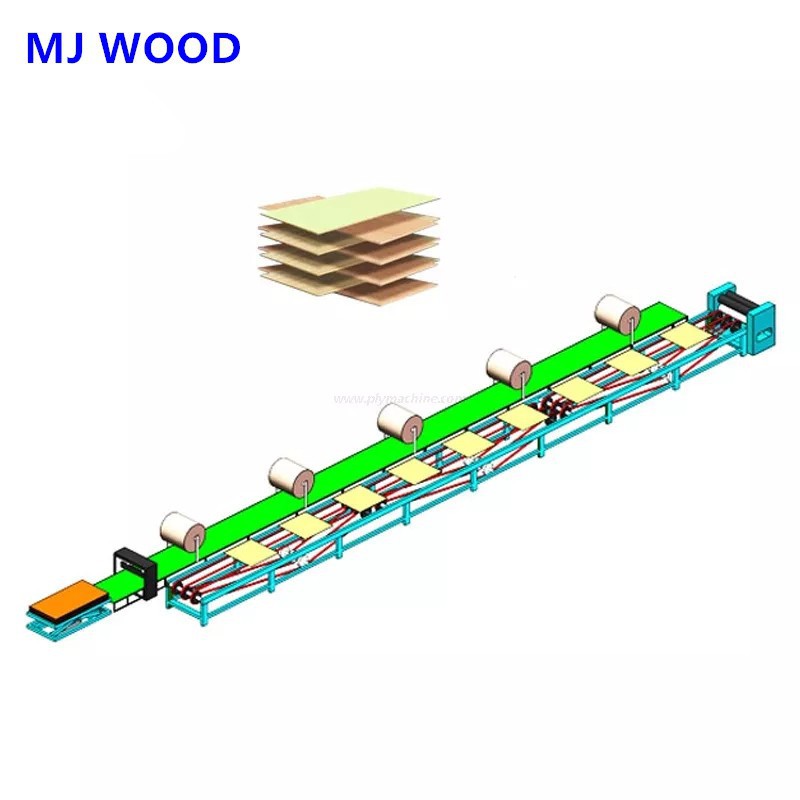

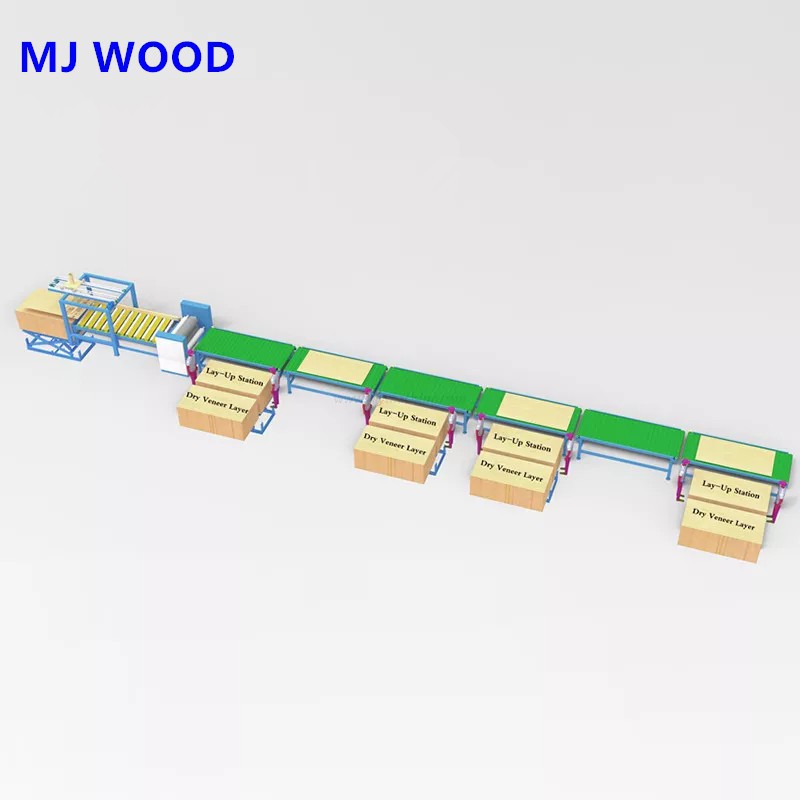

This machine automatically assembles core veneers into continuous sheets, cuts them accurately to preset sizes such as 4×8 ft or 3×6 ft, and delivers the finished veneer cores to the next production stage. Compared with traditional manual paving tables, the automatic paving line offers higher efficiency, better accuracy, and lower raw material waste, making it an ideal choice for modern plywood factories in South America.

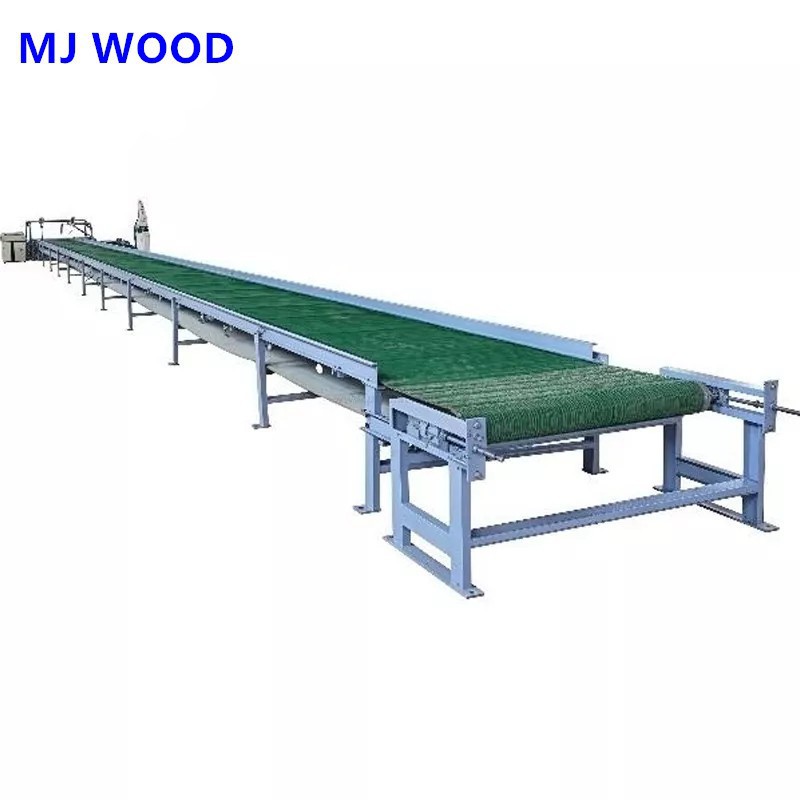

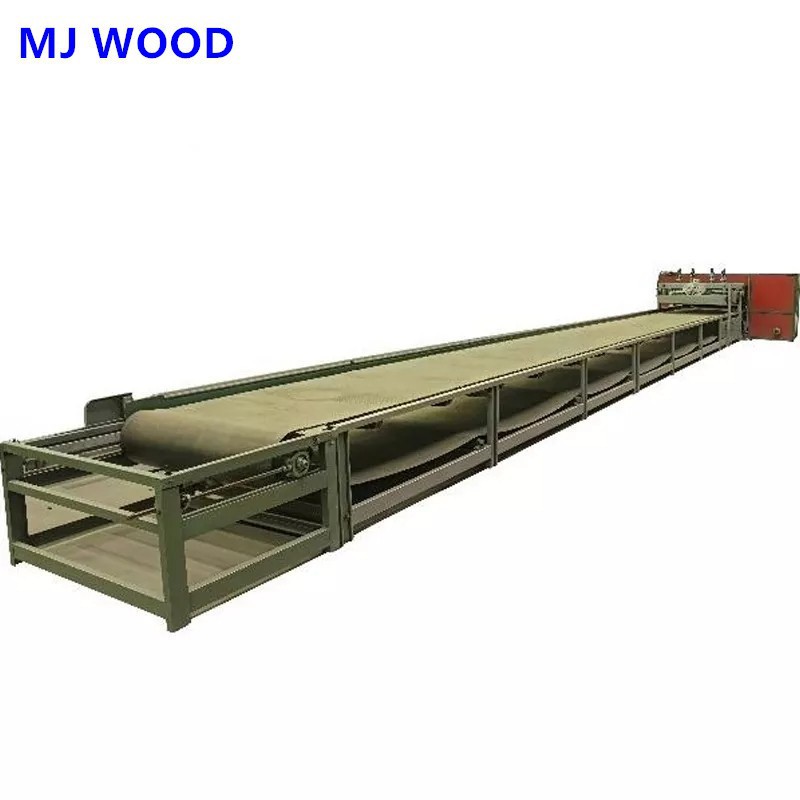

The plywood paving line is available with steel mesh conveyor belt or rubber belt conveyor, depending on production requirements. The steel mesh type is chain-driven, ensuring high assembling precision with no tolerance, while the belt conveyor type provides stable and economical operation. Optional configurations include automatic side stacker, receiving board system, dust collecting unit, and free-of-foundation design, allowing easy installation in both new and existing workshops.
Designed for continuous operation, the machine significantly reduces dependence on skilled workers. Even new operators can quickly master the assembling process, which helps factories solve labor shortages and simplify worker management. The automatic and standardized paving process also improves the internal structure of plywood panels, resulting in stronger bonding, better flatness, and more consistent quality.
Compared with manual assembling on trolleys, the Automatic Plywood Paving Line saves core veneer material by minimizing trimming loss during cutting. Continuous paving and adjustable conveying speed ensure smooth workflow and higher daily output, making the production line more efficient and cost-effective.
With a strong mechanical structure, reliable electrical components, and low maintenance requirements, this plywood paving machine is well suited for long working shifts and demanding factory environments commonly found in Brazil, Argentina, Chile, Peru, Colombia and other South American countries.
The Automatic Plywood Paving Line is an ideal solution for plywood manufacturers looking to upgrade from manual assembling to automated production, improve productivity, and achieve stable, long-term operation with excellent return on investment.
This machine can replace traditional manual assembling on trolleys, especially suitable for new factories or workshops with inexperienced workers.
Parameters Of Plywood Paving Machine
|
Length of Conveyor |
24m/30m (customized according to capacity) |
|
Conveyor Type |
Mesh belt / rubber belt |
|
Power of saw |
4KW |
|
Power of conveyor |
2.2KW |
|
Stacking type |
Automatic stacking, with or without lift table (2types) |
|
Feeding speed |
0-50m/min (frequency adjustable) |
Main Applications
Suitable Production Lines
Plywood production line
LVL (Laminated Veneer Lumber) production line
Blockboard production line
Engineered veneer panel production
Why Choose Our Plywood Paving Line
Proven solution for plywood factories worldwide
Suitable for both new plants and production upgrades
Customizable size, speed, and configuration
Stable operation, low maintenance
Professional after-sales technical support
