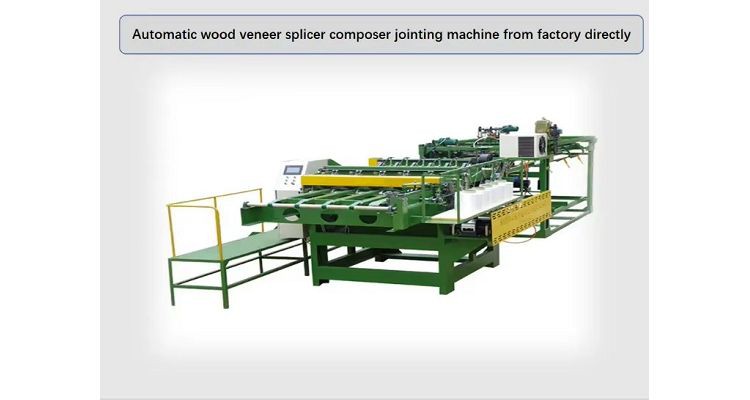

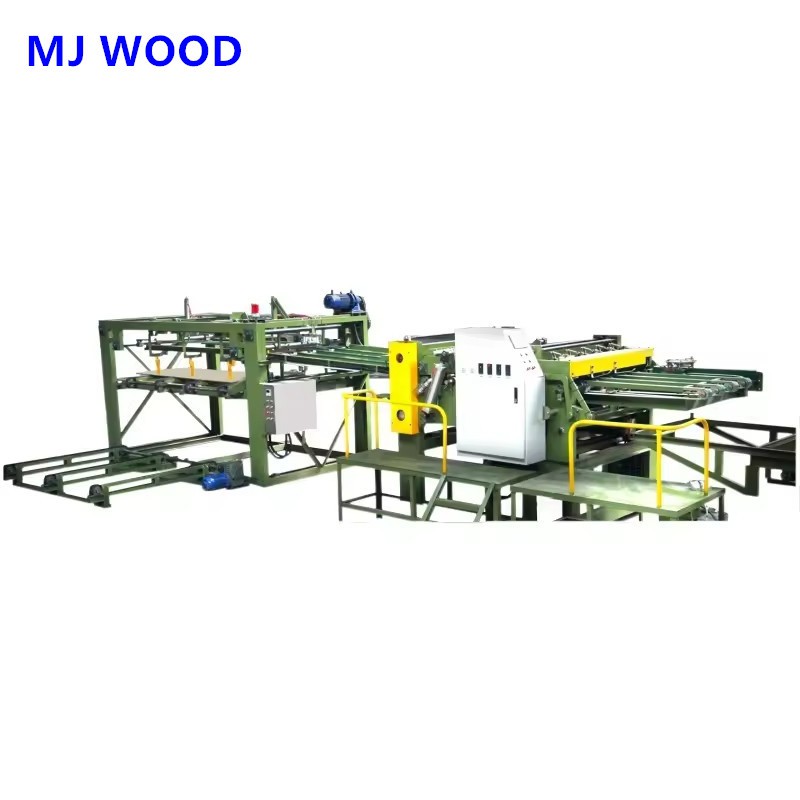

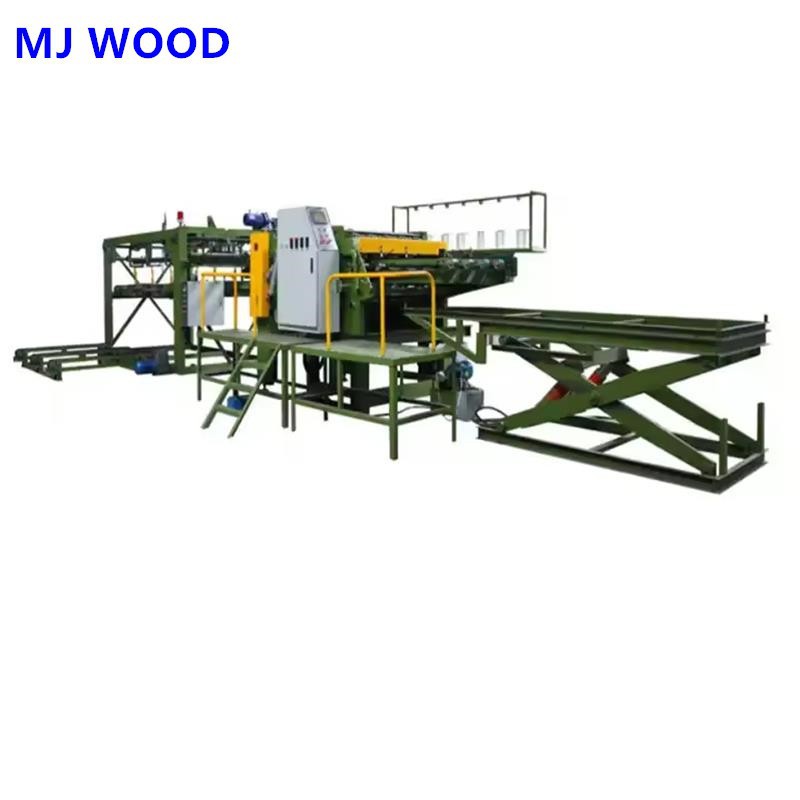

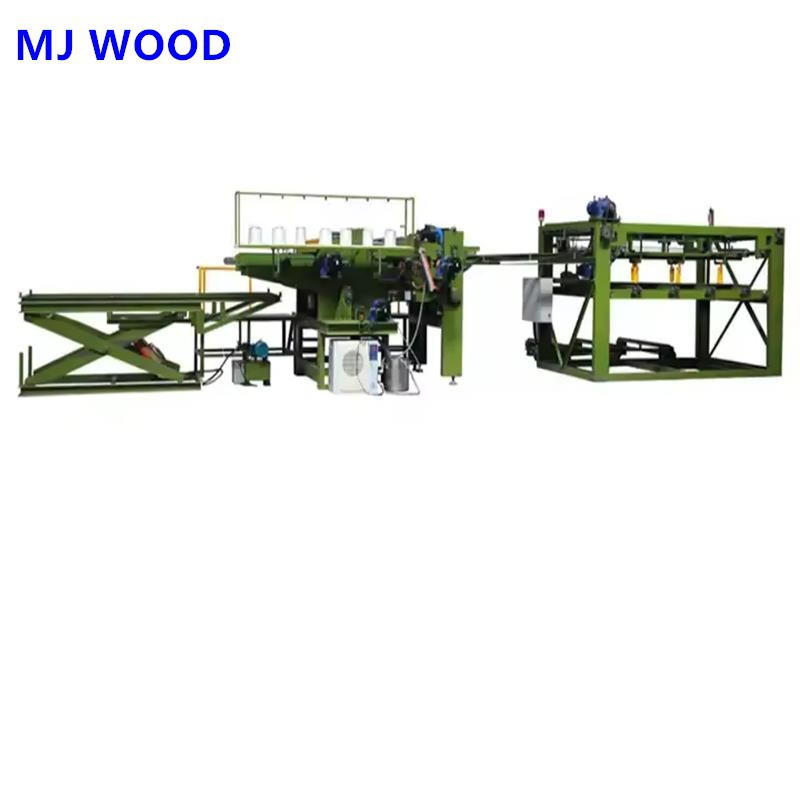

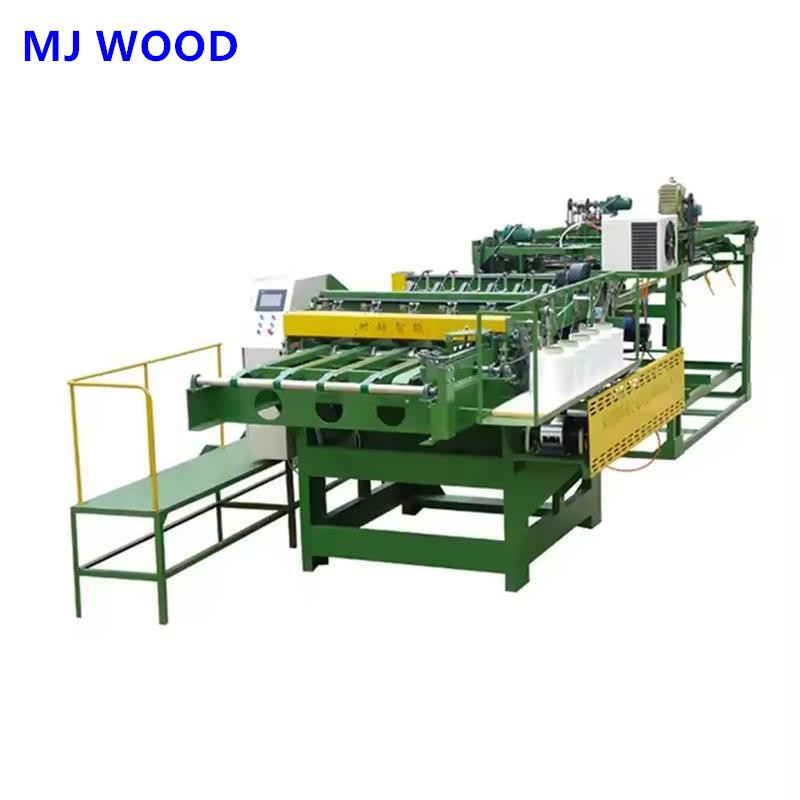

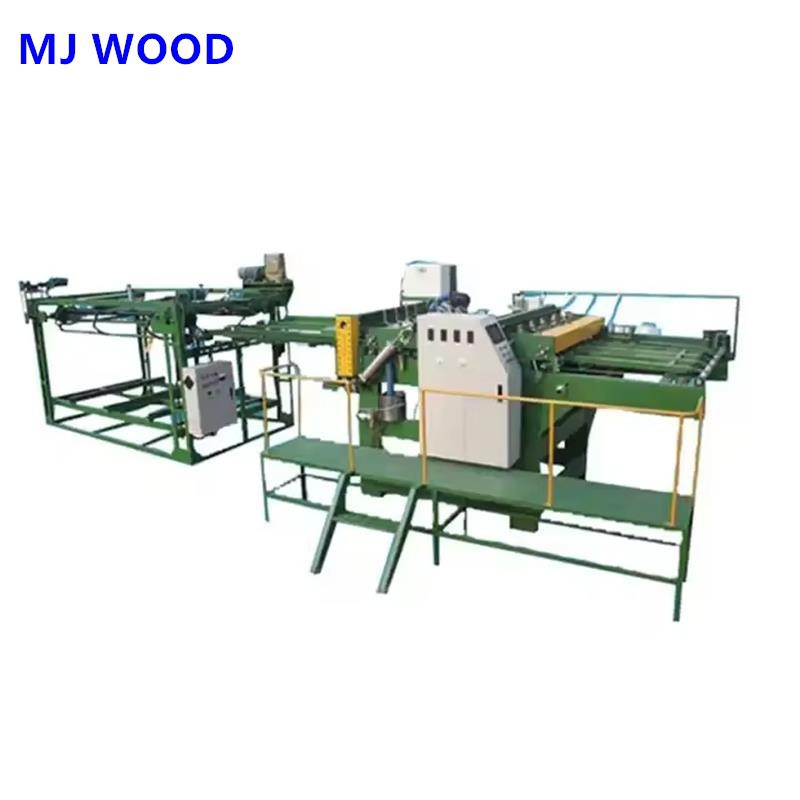

The core veneer builder for Plywood Making
1 The core veneer builder, also named as core veneer composer machine, finger jointing machine, is suitable for core joining together in plywood production line.
2 It can work different length sizes of core veneer with high strength thread and hot melt glue adhesive connection as one whole body.
3 Then facilitate the subsequent stages of production of plywood line. The whole process can be operated by one worker, it is time-saving and efficient.
Product Details
The core veneer builder plays a critical role in plywood manufacturing by ensuring consistent core structure and panel dimensions. Compared with manual veneer assembling, machine-based core veneer building significantly improves efficiency, accuracy, and product consistency.

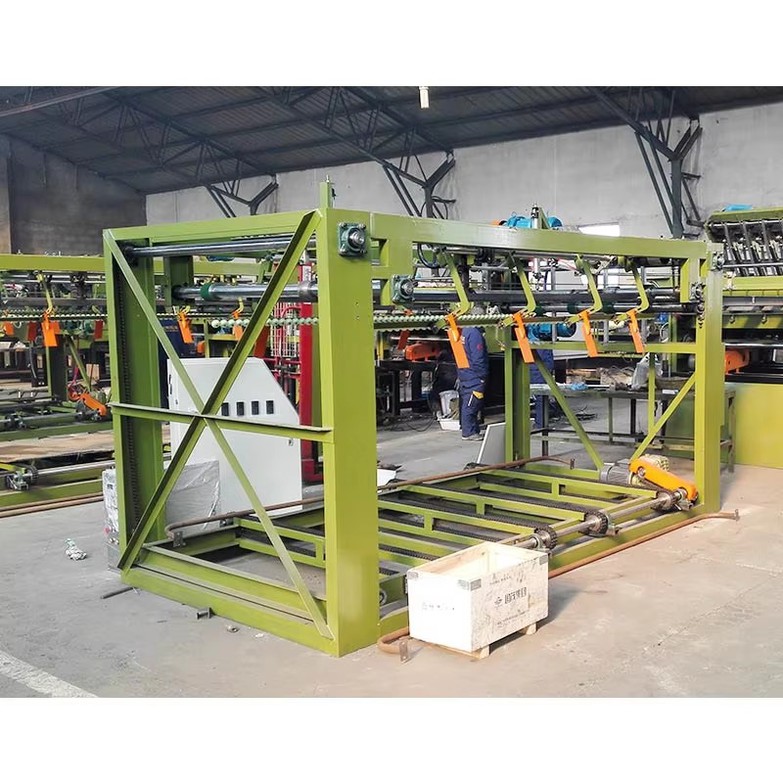

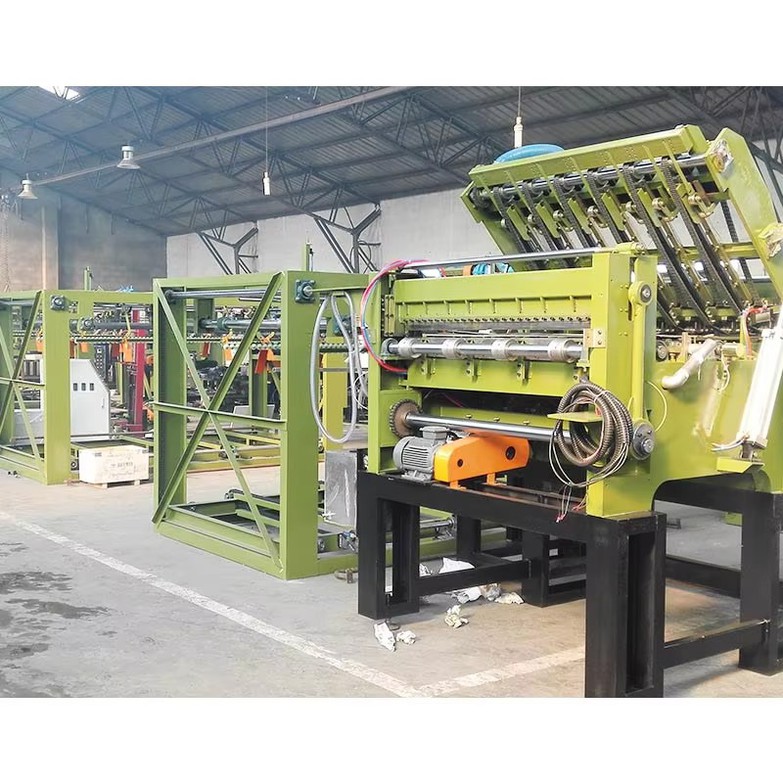

This core veneer builder features a reliable mechanical structure and automated conveying system, allowing veneers to be positioned and assembled according to preset specifications. The machine helps reduce misalignment and gaps between veneers, improving final plywood strength and stability while supporting continuous production.
Working Principle

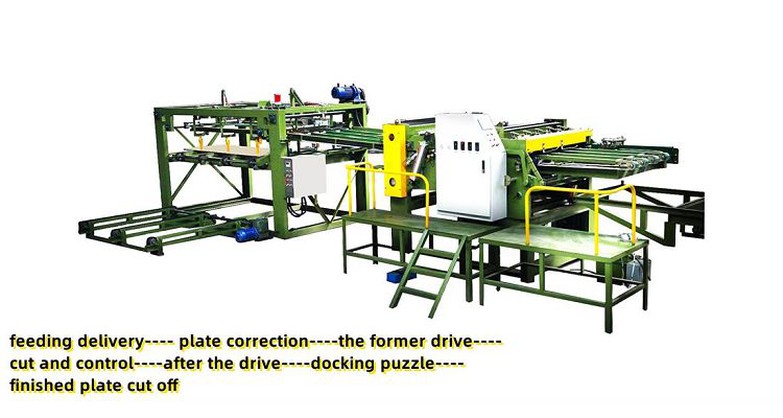

During operation, veneer sheets are fed into the core veneer builder. The system automatically positions and arranges the veneers into a core structure based on predefined settings. The assembled core is then discharged continuously for subsequent gluing and hot pressing processes.
Technical Specifications (Customizable)
|
Specification of Core Veneer Jointing Machine or Plywood Making Machine |
|
|
Knife length(mm) |
1680(840 x 2 No.s) |
|
Working veneer width(mm) |
≤1600 |
|
After jointing size(mm) |
1600x2600mm |
|
Veneer thickness(mm) |
1.0-4.0mm |
|
Feeding speed(m/Min) |
32 |
|
Number of glue threads(Rows) |
5--7 |
|
Total power required(KW) |
21 |
|
Total gross weight(kg) |
6000 |
|
Shipping measurement |
L:7m×W:2.4mxH:2.4m |
|
Man power needed |
5-6P/min |
Applications
Plywood core veneer assembling
Multilayer and engineered board production
Automatic plywood production lines
Production line upgrading projects
Advantages
Improved Core Consistency and Strength
Ensures stable plywood structure and quality.
01
Reduced Labor Dependence
Minimizes manual errors and labor costs.
02
Stable and Continuous Operation
Easy integration with upstream and downstream equipment.
03
Flexible Customization Options
Adaptable to different veneer sizes and production requirements.
04
Suitable for Export and Turnkey Projects
Ideal for overseas plywood manufacturing plants.
05

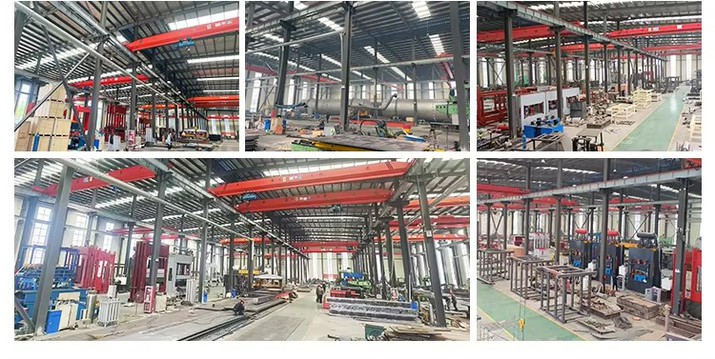

About Our Company

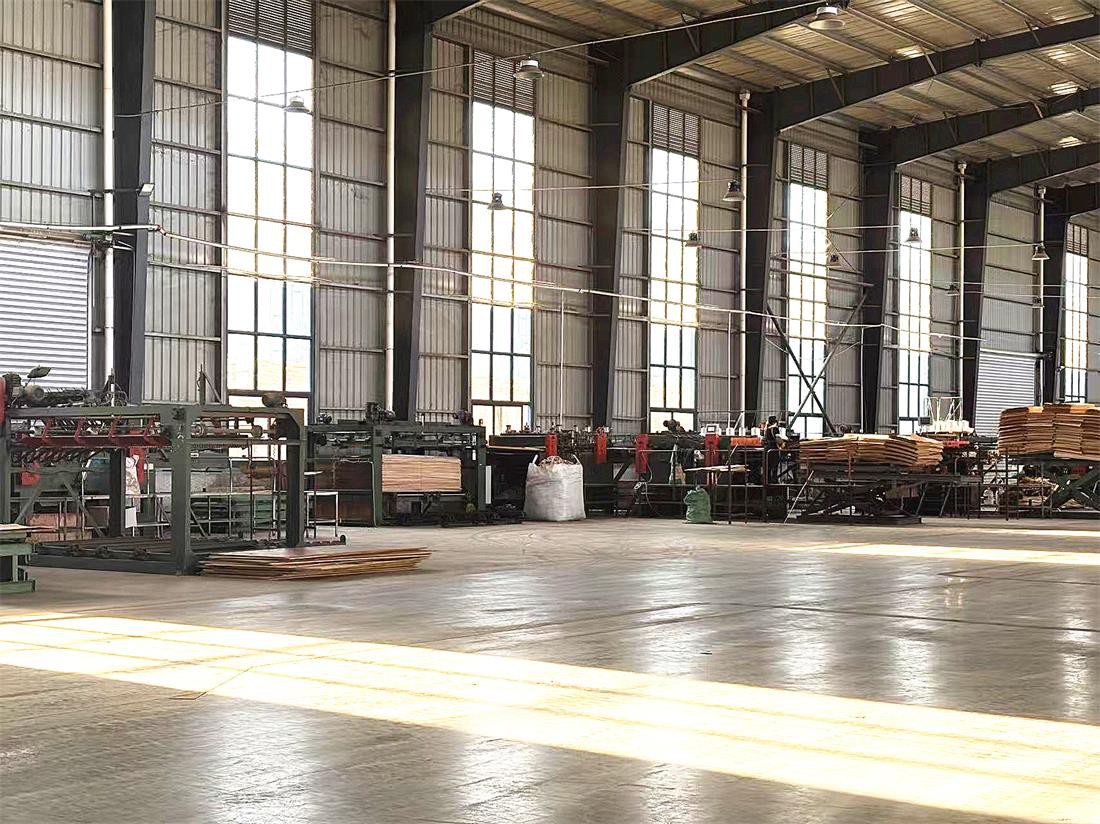

We are a professional manufacturer specializing in plywood production machinery and automation solutions. With extensive experience in core veneer builder equipment, we provide reliable and customized machines to customers worldwide.
certificate
packaging and shipping
FAQ
Q: Can the core veneer builder be customized?
A: Yes, it can be customized according to veneer size, core structure, and production capacity.
Q: Is this machine suitable for automatic plywood lines?
A: Yes, it is designed for integration into automatic plywood production lines.
Q: Can it be used for upgrading existing production lines?
A: Yes, it is suitable for both new projects and production line upgrades.
