Product Overview
At its core, this lathe integrates heavy-duty cast iron construction-with a bed thickness of 120 mm-and Taiwan Hiwin linear guides to ensure stability even during high-speed operations reaching 1800 RPM. This stability is critical for maintaining consistent output quality across both hardwood species (like maple and teak) and softwoods (such as pine and fir). Its innovative two-stage cutting system-featuring roughing cutters for material removal and finishing cutters for surface refinement-reduces cycle times by 25% compared to single-stage lathes while achieving surface finishes as smooth as Ra 1.6 μm-eliminating the need for secondary sanding in most applications.
What distinguishes this lathe is its adaptability to diverse production goals. Whether producing thin veneers for plywood lamination, cylindrical structural components, or decorative turned pieces, it maintains consistent accuracy across 10,000+ production cycles before requiring calibration. This reliability has made it a preferred choice for manufacturers seeking to balance high throughput with exceptional quality control.
Product Advantage
The lathe's durability begins with its wholly cast iron bed, which undergoes a rigorous high-temperature annealing and stress relief process-held at 650°C for 48 hours-to eliminate internal stresses. This treatment ensures the bed retains its dimensional stability even after years of continuous use, with minimal deflection (less than 0.02 mm/m) under full load.
To further enhance precision, the lathe incorporates TBI ball screws with C3 class accuracy and Yako servo motors-known for their low backlash and high torque output. These components work in tandem to deliver precise motion control, minimizing vibration during heavy cuts and ensuring consistent turning accuracy of ±0.05 mm. The spindle assembly, supported by precision angular contact bearings, maintains runout below 0.01 mm, critical for producing uniform veneers and cylindrical parts.
Automation is a key driver of this lathe's efficiency, featuring a full automatic feeding system that streamlines the production workflow from log loading to finished product ejection. The system includes a hydraulic log loader that handles timbers weighing up to 500 kg, a centering sensor that identifies the log's geometric center with 99.5% accuracy, and a programmable control system that executes turning programs without manual intervention.
In line with modern industrial standards, the lathe incorporates energy-saving features that optimize operational costs. Its frequency-controlled spindle adjusts speed dynamically based on material hardness-slowing to 600 RPM for dense hardwoods like oak and accelerating to 1800 RPM for softwoods like pine-reducing energy consumption by 15–20% compared to fixed-speed models.
Safety is equally prioritized, with a comprehensive suite of features that ensure compliance with international standards including CE, OSHA, and ISO 13849-1. These include emergency stop buttons at three strategic locations, interlocked protective enclosures that halt operation if opened, and anti-vibration feet that reduce noise levels to below 85 dB-creating a safer and more comfortable working environment. The lathe also features overload protection for both the spindle and feeding system, preventing damage during unexpected jams or material inconsistencies.
Specifications (Customizable)
|
Max.peeling length of log |
2600mm |
|
Max.diameter of log |
500mm |
|
Veneer cutting thickness |
0.5-3.6mm |
|
Cutting speed |
48m/min |
|
Power |
31.5kw |
|
Total weight |
About 7800kg |
|
Dimension |
5300x2200x1600mm |
Application
Plywood production lines
Veneer processing factories
Wood-based panel manufacturing
Furniture and construction formwork material preparation
The machine can be integrated with debarkers, veneer dryers, and hot press machines to form a complete plywood production line.
How Does a Peeling Machine Work?

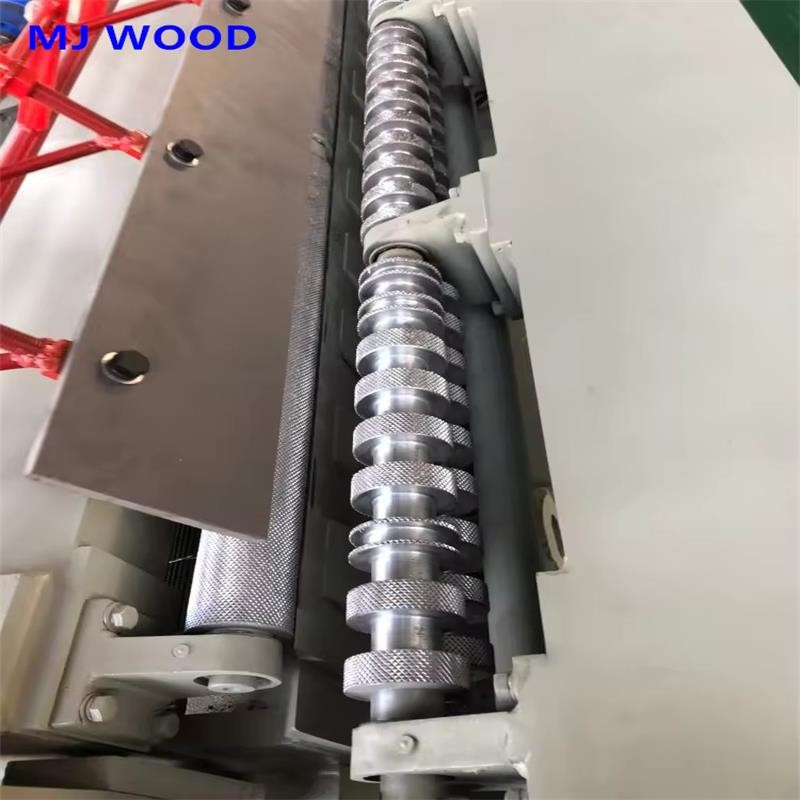

The machine works by gripping and rotating the log using pressure rollers while a peeling knife continuously cuts veneer from the surface.
By precisely controlling the feeding speed and veneer thickness, the machine produces uniform veneers suitable for industrial plywood production.
Why Choose Our Veneer Peeling Machine?
Professional spindleless veneer peeling machine manufacturer
OEM & ODM customization available
Strict quality inspection before delivery
Stable lead time and export experience
Technical support and after-sales service
We focus on delivering long-term, efficient veneer peeling solutions, not just machines.
FAQ
Q: .Can you customize products for clients?
A: Yes We can customize and produce woodworking machines according to the customer'srequirements or drawings.
Q: What about your products quality?
A: We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.
Q: How can we trust your factory?
A: We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.
