High-Efficiency Drying Solution for Plywood Core Veneer
Product Overview

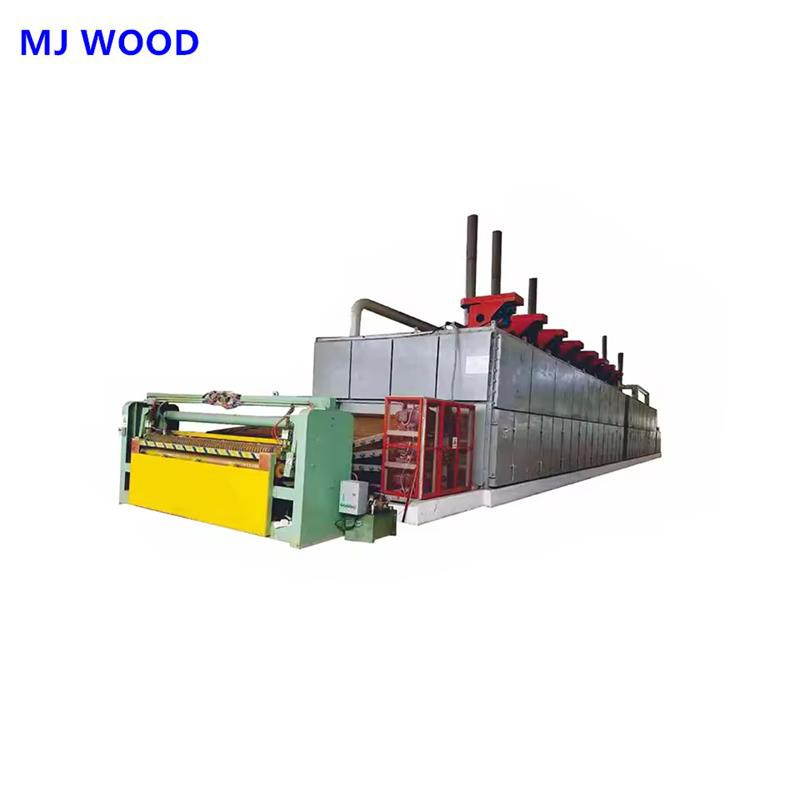

The Core Veneer Dryer Machine is specially designed for drying plywood core veneers to achieve stable moisture content before gluing and pressing processes. By using a controlled hot air circulation system, the machine ensures uniform drying, improved veneer quality, and enhanced bonding performance in plywood production.

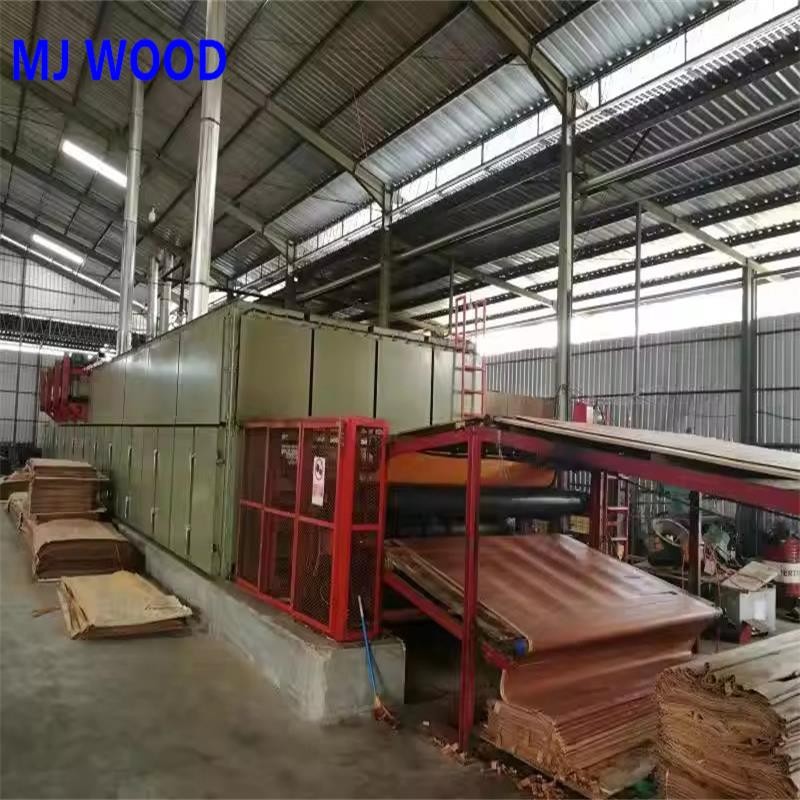

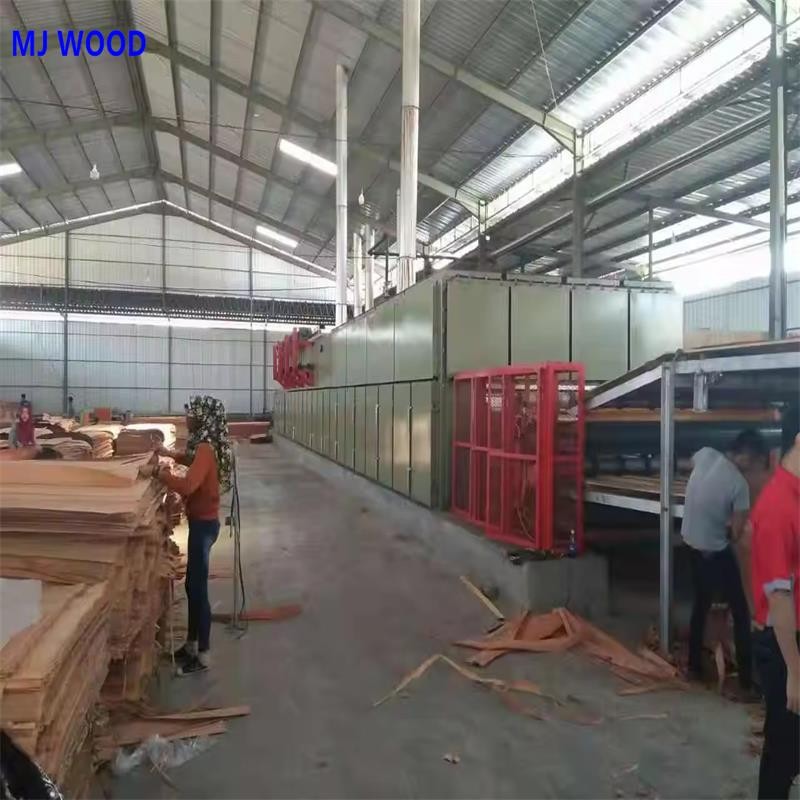

This machine is widely used in plywood factories, blockboard plants, construction formwork production lines, and industrial plywood manufacturing projects, especially suitable for continuous and large-scale production.
Specifications
|
Item No |
MJ-D001 |
MJ-D002 |
MJ-D003 |
MJ-D004 |
MJ-D005 |
MJ-D006 |
MJ-D007 |
MJ-D008 |
MJ-D009 |
MJ-D010 |
MJ-D011 |
|
Working width/mm |
2650 |
2650 |
2650 |
2650 |
2650 |
2650 |
2650 |
2650 |
2650 |
2650 |
2650 |
|
Working layer number |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
Heating roomlengfimm |
14000 |
16000 |
18000 |
20000 |
22000 |
24000 |
26000 |
28000 |
30000 |
32000 |
34000 |
|
Coling room length/mm |
2000 |
2000 |
2000 |
2000 |
2000 |
4000 |
4000 |
4000 |
4000 |
4000 |
4000 |
|
Total power/kw |
96 |
107 |
123 |
133.5 |
150.5 |
168.5 |
179.5 |
201 |
212 |
223 |
234 |
|
Transmission motor powerlkw |
4*3 |
4*3 |
5.5*3 |
5.5*3 |
7.5*3 |
7.5*3 |
7.5*3 |
11*3 |
11*3 |
11*3 |
11*3 |
|
Heaing fan motor powerkw |
11*7 |
11*8 |
11*9 |
11*10 |
11*11 |
11*12 |
11*13 |
11*14 |
11*15 |
11*16 |
11*17 |
|
Cocling fan mofor powenkw |
4+3 |
4+3 |
4+3 |
4+3 |
4+3 |
4*2+3*2 |
4*2+3*2 |
4*2+3*2 |
4*2+3*2 |
4*2+3*2 |
4*2+3*2 |
|
Veneer delivery speed/m/min |
4-40 |
4-40 |
4-40 |
4-40 |
4-40 |
4-40 |
4-40 |
4-40 |
4-40 |
4-40 |
4-40 |
|
Steam consumpfionlkg/h |
2300 |
2600 |
3000 |
3300 |
3600 |
4000 |
4300 |
4600 |
5000 |
5300 |
5600 |
|
Steam pressure/MPa |
0.6~1.2 |
0.6~1.2 |
0.6~1.2 |
0.6~1.2 |
0.6~1.2 |
0.6~1.2 |
0.6~1.2 |
0.6~1.2 |
0.6~1.2 |
0.6~1.2 |
0.6~1.2 |
|
Steam drying temperature/℃ |
140~170 |
140~170 |
140~170 |
140-170 |
140~170 |
140~170 |
140~170 |
140-170 |
140-170 |
140~170 |
140~170 |
|
Galvanized mesh hole width mm |
25*35 |
25*35 |
25*35 |
25*35 |
25*35 |
25*35 |
25*35 |
25*35 |
25*35 |
25*35 |
25*35 |
|
Veneer densitylkg/m³ |
~590 |
~590 |
~590 |
~590 |
~590 |
~590 |
~590 |
~590 |
~590 |
~590 |
~590 |
|
Veneer thickness/mm |
0.5~1.7 |
0.5~1.7 |
0.5~1.7 |
0.5~1.7 |
0.5~1.7 |
0.5~1.7 |
0.5~1.7 |
0.5~1.7 |
0.5~1.7 |
0.5~1.7 |
0.5~1.7 |
|
Initial moisture content/% |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
|
Inal moisture content/% |
10±2 |
10±2 |
10±2 |
10±2 |
10±2 |
10±2 |
10±2 |
10±2 |
10±2 |
10±2 |
10±2 |
|
Drying capacityím'h |
2.6 |
3 |
3.4 |
3.8 |
4.2 |
4.7 |
5.2 |
5.7 |
6.2 |
6.7 |
7.2 |
|
Dimensions(L*W*H)/mm |
22070*5150 |
24070*5150 |
26070*5150 |
28070*5150 |
30070*5150 |
35870*5150 |
37870*5150 |
39870*5150 |
41870*5150 |
43870*5150 |
45870*5150 |
|
Weight/kg |
56000 |
61000 |
66000 |
72000 |
78000 |
88000 |
95000 |
102000 |
109000 |
116000 |
123000 |
Key Advantages
Uniform Drying & Stable Moisture Content
Optimized airflow and temperature control ensure even heat distribution, preventing over-drying or uneven moisture.
High Efficiency & Energy Saving
Advanced heat circulation design improves thermal efficiency and reduces overall energy consumption.
Wide Veneer Compatibility
Suitable for different wood species, veneer thicknesses, and panel sizes, meeting diverse production requirements.
Reliable Operation for Continuous Production
Heavy-duty structure and proven transmission system ensure stable performance under long-time operation.
Applications
- Plywood core veneer drying
- Construction plywood and formwork production
- Furniture-grade plywood manufacturing
- Industrial wood-based panel production
- Automatic plywood production lines
- The Core Veneer Dryer Machine is a key piece of equipment for ensuring consistent quality and stable output in modern plywood factories.
Working Principle

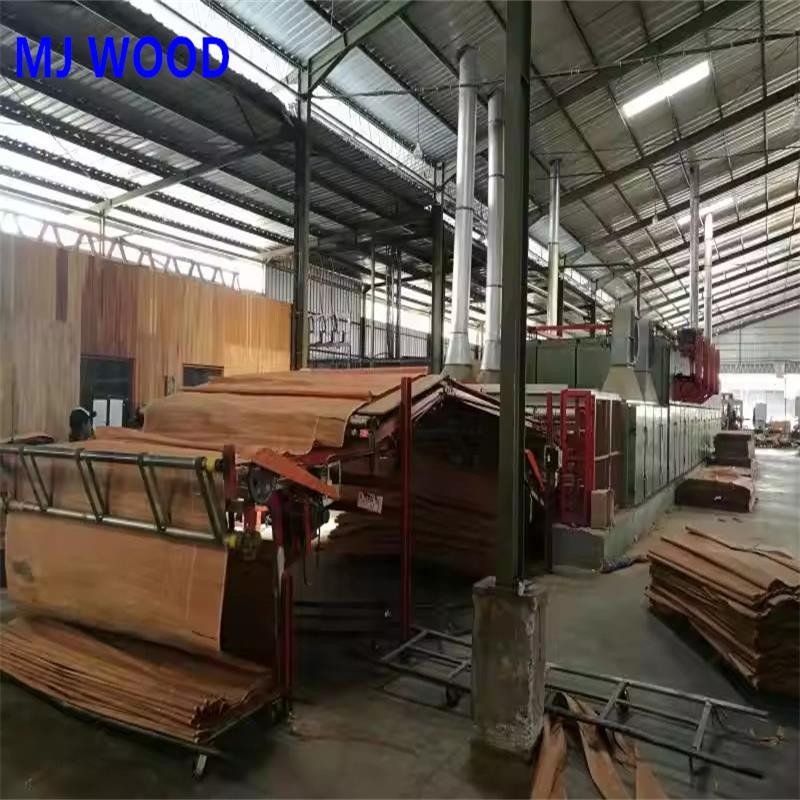

Core veneers are fed into the drying chamber through an automatic feeding system. Under controlled temperature, airflow, and drying time, hot air circulates evenly across the veneer surface. Moisture is efficiently removed and discharged, resulting in flat, uniformly dried veneers with optimal moisture content for subsequent processing.
Why Choose Our Core Veneer Dryer Machine?
- Extensive experience in plywood production line equipment
- Mature drying technology with proven industrial performance
- Seamless integration with peeling, cutting, and paving systems
- Export-standard design, CE compliance available
- Customized solutions for plant capacity and energy conditions
- Widely supplied to Middle East, Southeast Asia, Africa, and South America
FAQ
Q: What is the difference between a core veneer dryer and a face veneer dryer?
A: Core veneers are thicker and require more uniform drying. The core veneer dryer is designed with optimized airflow and structure to handle thicker veneers efficiently.
Q: What moisture content can be achieved after drying?
A: The final moisture content is typically controlled between 8% and 12%, adjustable according to plywood production requirements.
Q: Can the machine be customized?
A: Yes, capacity, heating source, veneer size, and control system can all be customized based on your production needs.
