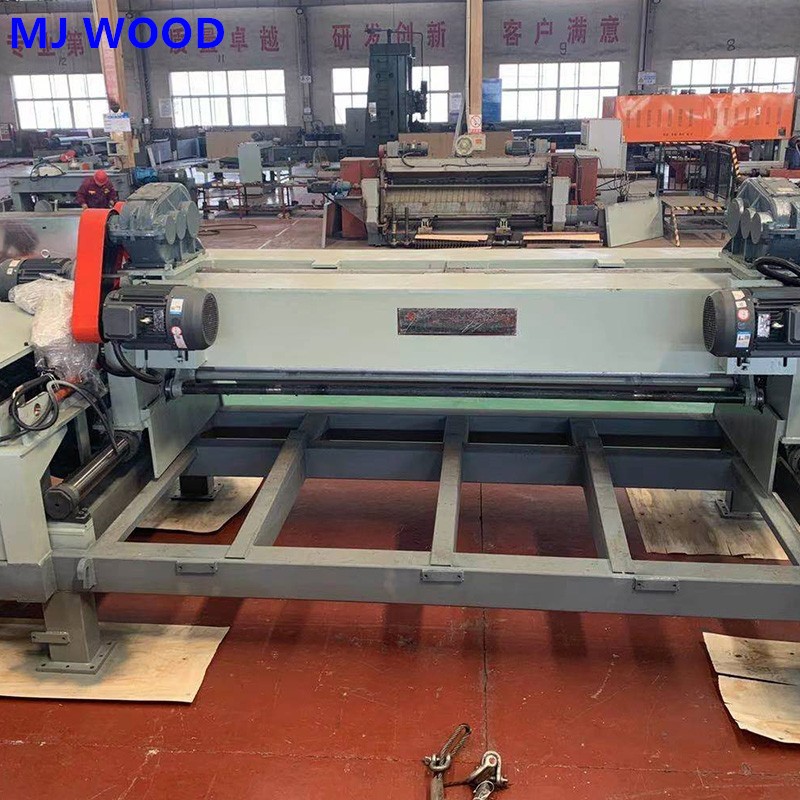

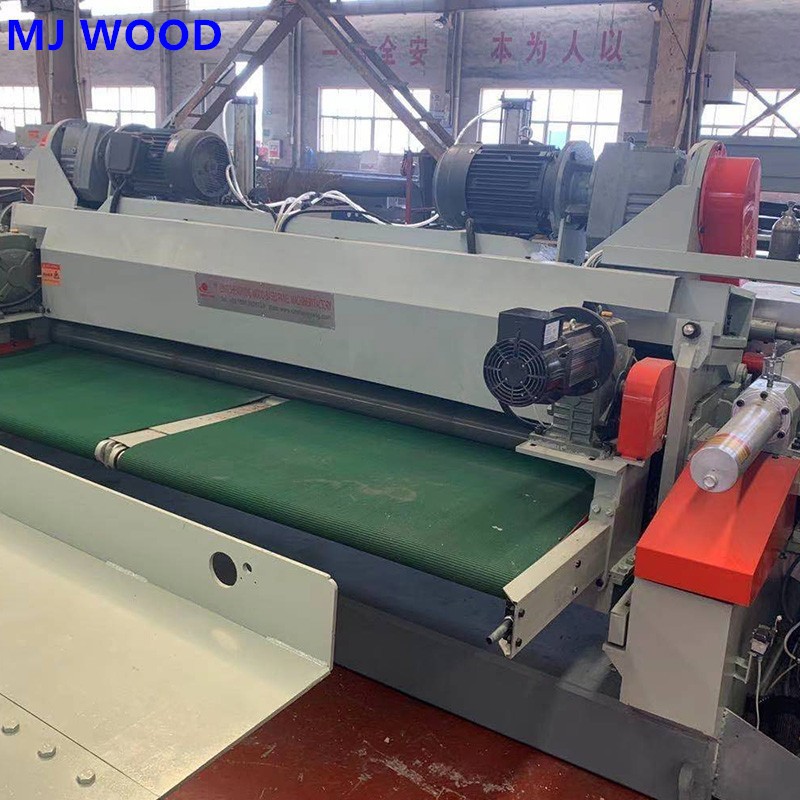

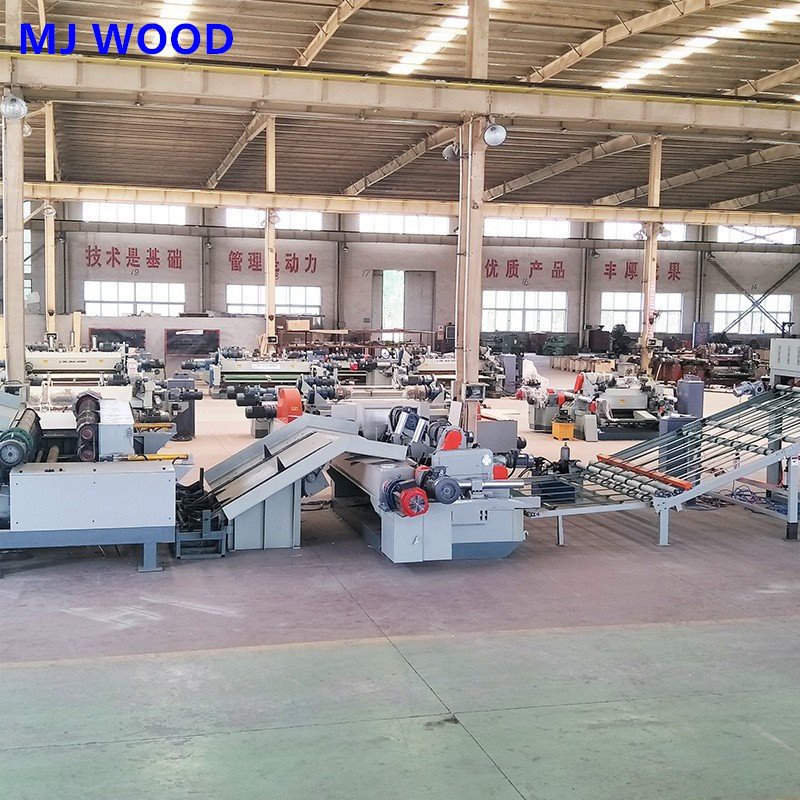

Core Veneer Peeling Machine

High-performance Core Veneer Peeling Machine designed for rotary peeling of logs to produce high-quality core veneers for plywood manufacturing. The machine delivers consistent veneer thickness, stable operation, and high production efficiency, making it ideal for plywood and multi layer board production lines.

Send Inquiry

Description

Product Overview

The quality of core veneers plays a critical role in plywood strength and stability.
Our Core Veneer Peeling Machine is engineered for continuous rotary peeling of logs or debarked logs to produce uniform and smooth core veneers.
With a stable transmission system and precise peeling mechanism, the machine minimizes veneer thickness variation and improves overall production efficiency.

Specifications (Customizable)

Size	4 feet / 5 feet / 6 feet / 8 feet / 10 feet,ect (All Parameters Customized)
Peeling thickness	1-3.5mm
Minimum wood diameter	32mm
Maximum peeling diameter	800mm
Single roller motor power	7.5KW*2
Speed	57m/min (Speed can be adjusted)
Feeding	7.5 kw
Cutting	4KW
Stack height	Below 1200mm
Minimum hole detection	100mm

Advanced Technology

Enlarged double drum and single drum, double power improves its peeling speed, suitable for both hardwood and softwood, the drum is chrome plated for more wear resistance and durability.

High Efficiency

Simple operation, high productivity, peeling speed up to 40-60m / min, adjustable speed,very high efficiency.

Servo Feeding Motor

Our feeding motor and shearing motor use servo motor of Foton. It is better than other brands of servo motors. Precise feeding will make the veneer thickness more uniform, while the shearing servo motor provides precise cutting width.
