Product Overview

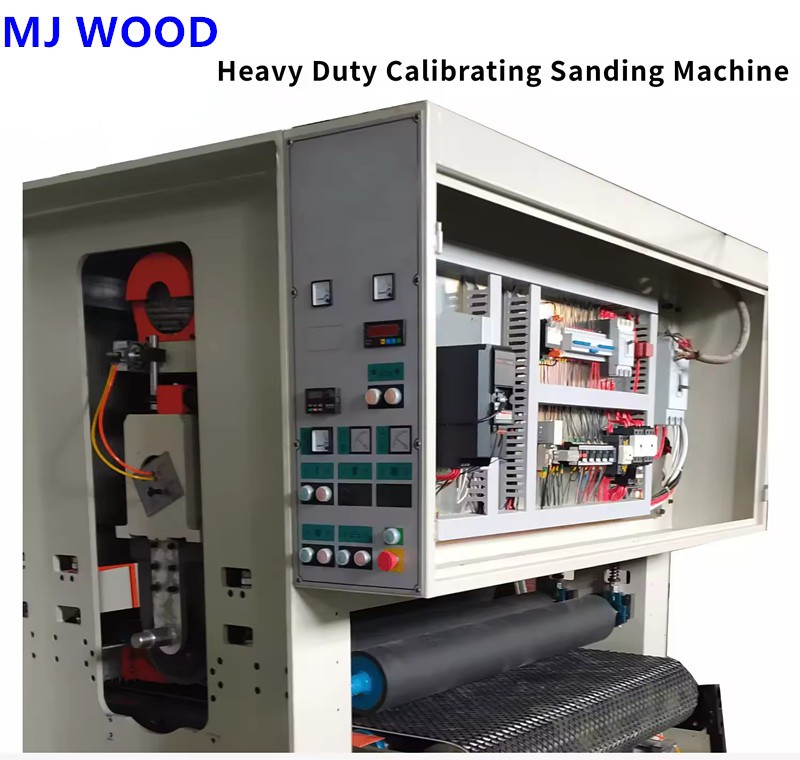

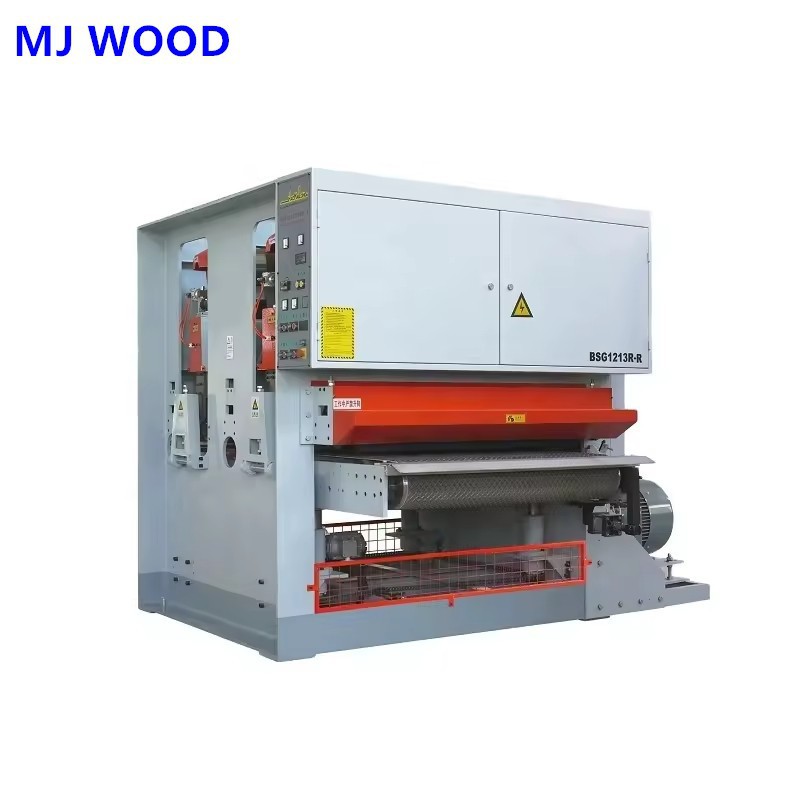

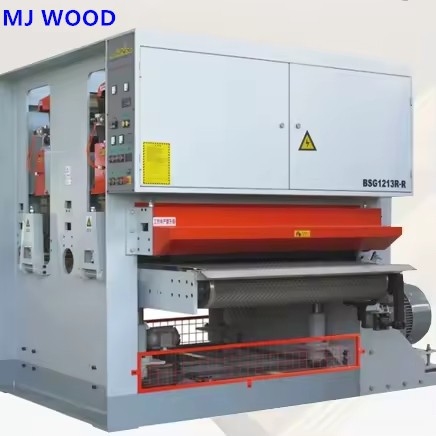

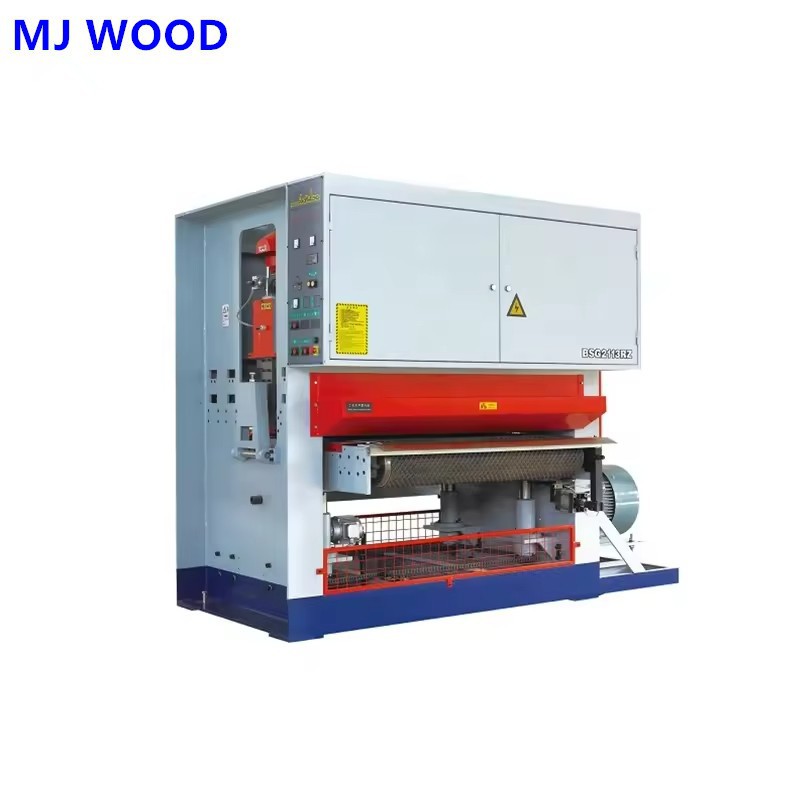

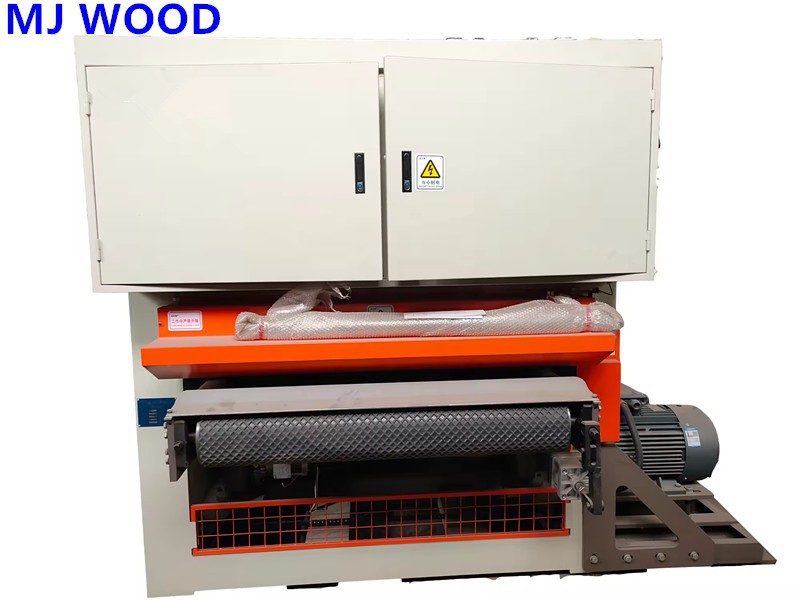

Our Sanding Machine for Plywood is an industrial-grade wide belt sander specifically engineered for plywood, multilayer board, and engineered panel production lines. Designed for continuous operation, high material removal stability, and precise thickness calibration, this machine is widely used in export-oriented plywood factories and automated panel processing plants.
Unlike general-purpose sanding equipment, this plywood sanding machine is optimized for the unique structural characteristics of plywood, including cross-laminated veneers, variable density layers, and surface veneer sensitivity. By combining a heavy-duty welded frame, precision sanding units, and intelligent control systems, the machine delivers consistent surface quality, accurate thickness control, and long-term operational reliability.
It is suitable for integration into complete plywood production lines, positioned after hot pressing and trimming, and before grading, laminating, coating, or film application.
Designed Specifically for Plywood Manufacturing
Plywood production presents challenges that differ significantly from solid wood sanding. Variations in veneer hardness, glue lines, and moisture content require a sanding solution that can maintain stability under continuous load.
This sanding machine for plywood is designed to:
- Maintain uniform pressure across wide panels
- Prevent surface burning and veneer penetration
- Achieve stable thickness calibration that meets grading and export standards
- Operate continuously in industrial environments
A robust machine structure, optimized abrasive belt layout, and adjustable feeding system ensure consistent sanding results even in high-volume production.
Working Principle
Plywood panels are fed into the sanding machine for plywood via a conveyor system. High-speed sanding belts process the panel surface evenly, while adjustable pressure and feeding speed ensure accurate thickness control. Finished panels are discharged automatically for grading or packaging.
Advantages of Our Plywood Sanding Machine
1
Optimized for Plywood Production
The machine is engineered specifically for plywood, ensuring stable performance when sanding cross-laminated structures and glue lines.
2
Accurate Thickness and Surface Control
High-precision sanding units and pressure control systems ensure consistent thickness across the entire panel, Improving grading accuracy and reducing rejection rates.
3
Stable and Continuous Operation
Designed for industrial use, the machine supports long production shifts with minimal downtime.
4
Flexible Configuration Options
Optional sanding units, motors, and feeding systems allow the machine to adapt to different plywood sizes and production capacities
5
Export-Oriented Design
The sanding machine complies with international manufacturing standards andis suitable for overseas plywood factories and export-focusedproduction lines.Technical Specifications (Customizable)
Specification
|
Name and Model |
MJ-S13001 |
MJ-S13002 |
|
Working width |
≤1300mm |
≤1300mm |
|
Working thickness |
0-100mm |
0-100mm |
|
Working length |
≥750mm |
≥1000mm |
|
Working precision |
±0.08mm |
±0.1mm |
|
Abrasive belt speed |
22.5m/s |
22.5m/s |
|
Abrasive belt size P*W |
2620*1320mm |
2620*1320mm |
|
Auto-feeding system: frequency |
15-50m/min (adjustable) |
5-30m/min (adjustable) |
|
Motor for 3M non-woven roller |
4KW (optional) |
|
|
Motor for abrasive belt |
55KW+45KW+37KW (optional) |
55KW+45KW (optional) |
|
Total power |
150KW |
116KW |
|
Working air pressure |
0.55Mpa |
0.5-0.8Mpa |
|
Air consumption |
1.2cbm/min |
1cbm/min |
|
Speed of dust-collecting |
6-45m/s |
5-30m/s |
|
Volume of dust-collecting |
28000cbm/h |
18000cbm/h |
|
Overall dimension |
3100*2845*2500mm |
2900*2820*2500mm |
|
Net weight |
12000kg |
10000kg |
Model Selection Guide
MJ-S13001 is recommended for high-capacity plywood factoriesrequiring higher sanding precision, faster feeding speed, and maximumsurface consistency.
MJ-S13002 is suitable for medium-capacity production lineswhere flexibility and energy efficiency are prioritized.
Our engineering team can assist in selecting the optimal configurationbased on your production volume and plywood specifications.
Applications
Finished plywood surface sanding
Multilayer and engineered board processing
Plywood production line finishing section
Panel grading and packaging preparation
About Our Company
We are a professional manufacturer specializing in plywood production machinery and woodworking equipment. With extensive experience in sanding machine for plywood solutions, we provide reliable machines and customized support to customers worldwide.
FAQ
Q: Can the sanding machine for plywood be customized?
A: Yes, customization is available based on plywood size, sanding accuracy, and production capacity.
Q: Can it be integrated into an automatic plywood line?
A: Yes, it integrates easily with trimming and stacking equipment.
Q: What is the delivery time?
A: Typically 20–35 working days depending on configuration.
