Product Overview

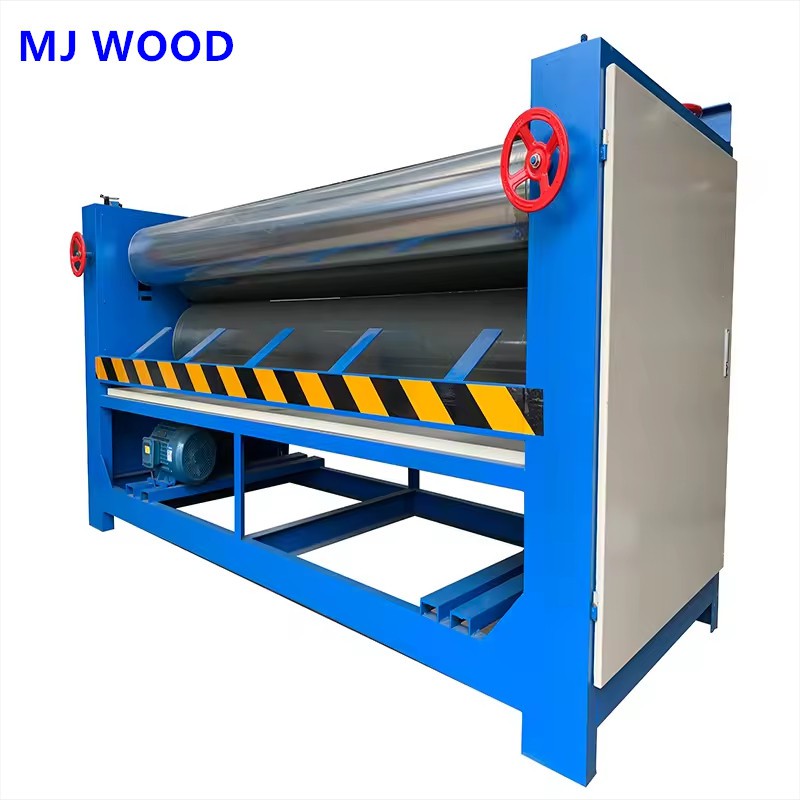

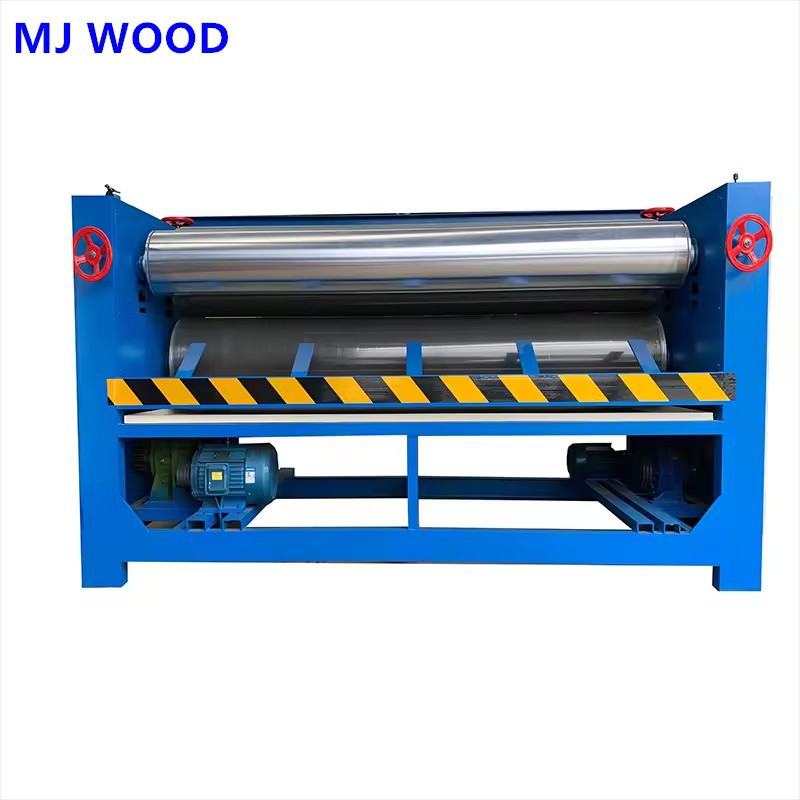

The glue spreader is an essential machine in the plywood manufacturing process, designed to evenly apply adhesive onto veneer sheets before pressing. Equipped with adjustable rollers, it ensures consistent glue coverage suitable for various glue viscosities and application thicknesses. This precise veneer glue spreading machine improves bond strength and prevents delamination, enhancing the overall quality and durability of finished plywood. It plays a vital role in achieving efficient and high-quality plywood production.
Key Features & Benefits
Uniform Glue Application
Precision rollers ensure even glue distribution and strong bonding.
Adjustable Glue Amount
Glue coating thickness can be adjusted for different veneer thicknesses and glue types.
Heavy-Duty Structure
Reinforced steel frame ensures stable and long-term operation.
Easy Operation & Maintenance
Simple operation, easy cleaning, and low maintenance cost.
Applications
Plywood manufacturing
Film faced plywood
Furniture panels
Multi-layer board production lines
Technical Specifications
|
Name and Model |
245mm glue spreader machine |
415mm glue spreader machine |
|
|
Working width |
1400mm |
1400mm |
|
|
Rubber Roller Diameter |
245mm |
415mm |
|
|
Chromate Treatment Roller Diameter |
210mm |
210mm |
|
|
Rotation speed of glue roller |
0-70rpm |
0-70rpm |
|
|
Rotation speed of Chromate Treatment Roller |
0-17rpm |
0-17rpm |
|
|
Main Motor Power |
3kw |
4kw |
|
|
Number of Roller |
4 rollers double side |
4 rollers double side |
|
|
Overall Dimension |
2200*1200*1400mm |
1600*1400*1400mm |
|
|
Weight |
1000kg |
1500kg |
|
Quality Control & Manufacturing
Each veneer glue spreader machine is tested before delivery to ensure uniform coating performance and stable operation during continuous production.
Why Choose Us
Professional Manufacturing Strength with Industry Expertise
As a senior manufacturer specializing in plywood machinery for years, we boast a mature R&D team of core technologies and standardized production workshops. From the structural design of glue spreaders, precision roller processing to overall assembly, we have accumulated rich industry experience. Core components are independently R&D and produced, strictly following the process requirements of the wood processing industry to ensure high compatibility of products with plywood and multi-layer board production lines. We are a long-term trusted partner of numerous panel enterprises worldwide.
Strict Quality Control + Cost-Effective Dual Guarantee
In terms of quality, we have established a full-process quality inspection system-high-quality steel and precision transmission components are selected for raw materials, and multiple inspections (material testing, glue uniformity testing, 72-hour continuous operation simulation test, etc.) are conducted before delivery to ensure stable and durable equipment with low failure rate. In terms of price, relying on the advantages of large-scale production and supply chain integration, we provide competitive pricing while adhering to quality standards, effectively reducing customers' procurement and long-term use costs.
Full-Scenario Customized Adaptability
We offer flexible customization solutions to address the production pain points of different customers-according to production scale (SMEs/large-scale production lines), veneer material (softwood/hardwood), glue type (water-based glue/oil-based glue), and production line layout, we can customize and adjust the machine's working width, roller specifications, motor power, and glue thickness adjustment range. Meanwhile, it supports seamless connection with peeling machines, cold press machines, hot press machines, etc., adapting to the upgrading and transformation of new and old production lines, and maximizing alignment with actual production needs.
Full-Cycle Worry-Free Technical Support
We provide one-stop service from pre-sales consultation to post-sales operation and maintenance-pre-sales, we offer production capacity evaluation and model recommendation to tailor production solutions for customers; in-sales, a professional team is dispatched for on-site installation and commissioning to ensure rapid commissioning of equipment; post-sales, we provide free operation training, 24/7 online technical consultation, regular maintenance guidance, and guarantee the long-term stable supply of original spare parts, quickly responding to troubleshooting needs to minimize production line downtime.
Contact Us
Contact us today for veneer glue spreader price, technical details, and customized plywood production solutions.
